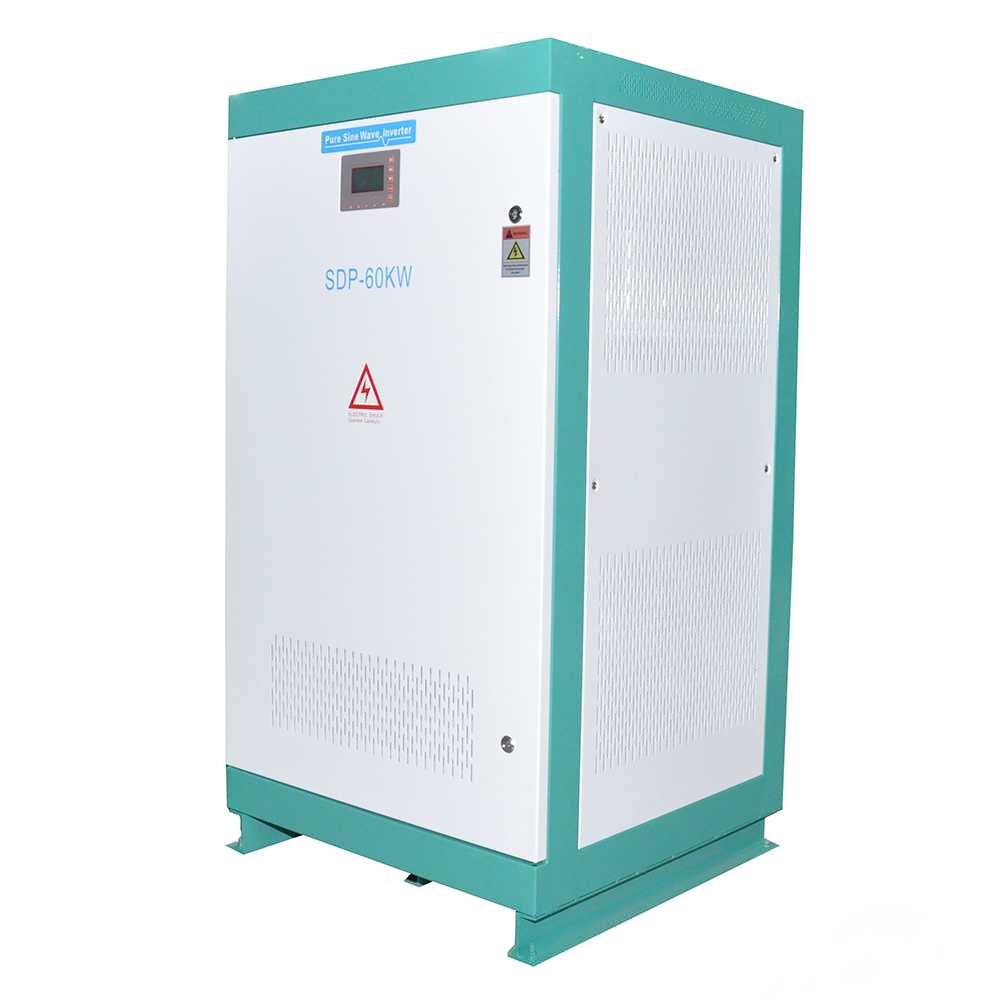

inversor 120/240V Pure sine wave Off Grid inverter 60kw Dc to Ac power solar inverter
inversor 120/240V Pure sine wave Off Grid inverter 60kw Dc to Ac power solar inverter, SDP-60KWOur SDP series Off Grid Pure sine wave inverter is one of the most advanced DC to AC conversion products in the world, it is suitable use for areas without electricity, vehicles, ships, solar energy, wind turbine and other renewable energy systems and etc, can supply power and provide guarantee effectively for the areas with traffic inconveniences, in the mountains, pastoral, border, island and other areas without electricity. It has the main advantages of high quality sine wave AC output, microcomputer control, humanness design, and it is high efficiency and low no-load loss, and no pollution. The inverter can also supply AC power to all kinds of electric equipment, air conditioners, motors, refrigerators, lights, TV, electric fans and other industrial power supply.
Technical Features:
1. Using the sixth generation
efficient IPM intelligent module from Japanese Mitsubishi, high efficiency and
stable performance. It with powerful protection function, the protection for
short circuit, over load, over temperature is more safe and reliable. It’s
service life can up to 15 years or more.
2. Intelligentized, modularized,
simple structure design with powerful function.
3. Two kinds of start mode: Step-down
Voltage Start and Variable Frequency Start. Customers can set start mode
according to the type of their load. This function is very convenient for users
and also reduce frequency converter’s usage, which reduced the cost of
equipment investment, easy to connect wires and control.
4. The output frequency can be setting
via LCD panel, it’s very convenient for customer.
5. The output voltage can be set
between -40 % to +20 % of rated voltage. And the output voltage is very
accuracy ±1%.
6. The DC input voltage range can be
set. Over-voltage point, under-voltage point, over-voltage recovery point,
under-voltage recovery point all can be setting via the LCD panel.
7. Pure sine wave output. With good
dynamic response less than 50MS, waveform distortion rate smaller, higher
conversion efficiency and stable output voltage.
8. Low Frequency Transformer, which
ensures that inverter has high efficiency.
9. High conversion efficiency, Max.
Efficiency≥94%,if 48VDC input, the efficiency can more than 85%.
10. Adopts black pure aluminum
radiator, which confirms the best radiating performance.
11. Powerful data display function.
LCD can display the DC input voltage, output frequency, phase voltage, phase
current, AC bypass input voltage, output power KWH, time and date, temperature,
fault code display.
12. Wide input voltage can be set
according to customer’s requirement. Input voltage range can be selected from
150-400V or 300-600V or 400-800V.
13. Wide input voltage can work without battery and solar charge controller, save more cost and With MPPT wide voltage input function, maximum use of solar power.
Model |
SDP-60KW |
SDP-80KW |
||||
Isolation mode |
Low Frequency Transformer |
|||||
DC
Input |
||||||
Rated
voltage (Vdc) |
384Vdc |
480Vdc |
384Vdc |
480Vdc |
||
Rated
current (A) |
104A |
125A |
208A |
167A |
||
Input
voltage range (Vdc) |
345~550V |
432~650V |
345~550V |
432~650V |
||
AC
Output |
||||||
Rated
power (Kw) |
60KW |
|
80KW |
|||
Rated
voltage |
220V±3% |
380V±3% |
220V±3% |
380V±3% |
||
Number
of phases |
1 phase 2 wire |
3 phase 4 wire |
1 phase 2 wire |
3 phase 4 wire |
||
Rated
current (A) |
273A |
91A |
364A |
121A |
||
Rated
output voltage range (V) |
220/230/240/380/400/415/440/480VAC
(optional) |
|||||
Output
frequency |
50Hz or
60Hz ±0.05 (Can set) |
|||||
Waveform |
Pure sine wave |
|||||
Waveform
distortion rate (THD) |
Linear load≤2% |
|||||
Dynamic Response time (Load 0←→100%) |
5%, ≤50ms |
|||||
Power
Factor (PF) |
0.99 |
|||||
Inverter
Efficiency |
>93% |
|||||
Electrical
insulation properties |
2000Vac、1 Minute |
|||||
Protection Function |
||||||
Overload
Ability |
150%、10s |
|||||
Protection
|
Input reverse polarity, under voltage,
overvoltage, output over-current, short circuit, overheating etc. |
|||||
Display |
LCD+LED |
|||||
Communication
interface (optional) |
RS485 (A、B) |
|||||
Method of
working |
Working continuously |
|||||
Cooling
method |
Fan-cooled |
|||||
Short-circuit
protection |
No automatic recovery, need to restart the
machine |
|||||
Working Environment &
Mechanical dimension |
||||||
Degree
of protection |
IP20 (indoor) |
|||||
Working
Altitude(m) |
≤3000m |
|||||
Working
temperature (℃) |
-20~+50℃ |
|||||
Relative
humidity (℃) |
0~90%, No condensation |
|||||
Noise
( 1 meter) |
≤55dB |
|||||
Unit size: (W x D x H) |
750×750×1485mm |
|||||
Reference weight (Kg) |
420Kg |
490Kg |
||||
Our
company can adjust parameter configuration according to user’s
requirement. |
- Place of Origin:
- China
- Brand:
- SANDI
- Unit Price:
- USD 11000
- Price Terms:
- FOB Ningbo, shanghai
- Packing:
- SANDI Standard export honeycomb carton packing with pallet
- Payment Terms:
- T/T
- Payment Remarks:
- T/T Paypal Western Union
- Delivery Time:
- 15 days
- Min Order Quantity:
- 1pcs
- Standard / Certificates:
- CE, ISO9001, UL, CSA
