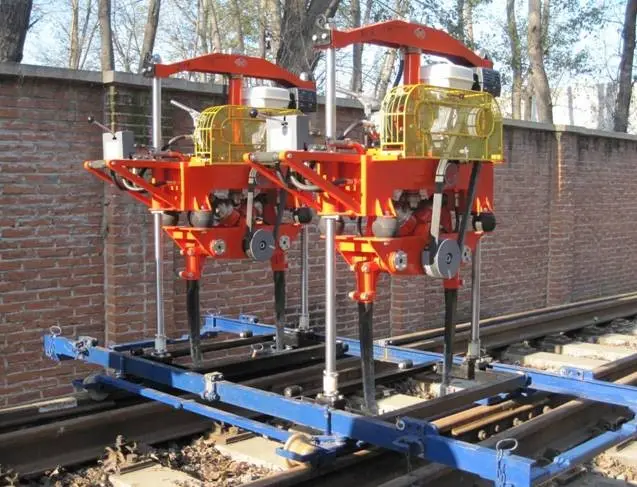

Hydraulic Rail Turnout Tamping Machine

YCD-2 hydraulic tumout tamping machine is a special mainenance mechanical equipment for railway turmouts. it is mainly used for tamping the seeper bllast in the tumout section, and can also take into account the tamping efect of the main track bed ballast.
BENEFITS
style="padding: 0px; margin: 0px; outline: none; list-style: none;">● This machine uses Honda gasoline engine GX390 as power, light weight, easy to start, at low tmeatate low noise and low pllution. which greall improves the working environment of workers and reduces labor intensity
style="padding: 0px; margin: 0px; outline: none; list-style: none;">● This machine adops patente tchnologoyswingng taveling frame, the traveling frame can swing feely, so that each team of tamping picks can be aligned with the sleepers and iserte at the same time, the tamping eficiency is higher, and the tamping efiet is better
style="padding: 0px; margin: 0px; outline: none; list-style: none;">● The machine adopts large excitation force, large amplitude, and no counterfrei nsetion, without rail clamping, counterweight and other devices, which improves work efficiency
style="padding: 0px; margin: 0px; outline: none; list-style: none;">● Insert under its own weight, no clamp, no damage to the rail
style="padding: 0px; margin: 0px; outline: none; list-style: none;">● The piston rods at both ends of the synchronous cylinder adopt "chain link articulation"
TECHNICAL DATA
style="padding: 0px; margin: 0px; outline: none; list-style: none; letter-spacing: 0px;">Engine
style="padding: 0px; margin: 0px; outline: none; list-style: none; letter-spacing: 0px;">HONDA GX390 petrol engine
style="padding: 0px; margin: 0px; outline: none; list-style: none; letter-spacing: 0px;">Power
style="padding: 0px; margin: 0px; outline: none; list-style: none; letter-spacing: 0px;">6.6 kW
style="padding: 0px; margin: 0px; outline: none; list-style: none; letter-spacing: 0px;">Vibration frequency
style="padding: 0px; margin: 0px; outline: none; list-style: none; letter-spacing: 0px;">60~70 Hz
style="padding: 0px; margin: 0px; outline: none; list-style: none; letter-spacing: 0px;">Exciting force
style="padding: 0px; margin: 0px; outline: none; list-style: none; letter-spacing: 0px;">≥22kN
style="padding: 0px; margin: 0px; outline: none; list-style: none; letter-spacing: 0px;">Working pressure
style="padding: 0px; margin: 0px; outline: none; list-style: none; letter-spacing: 0px;">5.0 MPa
style="padding: 0px; margin: 0px; outline: none; list-style: none; letter-spacing: 0px;">Clamping force
style="padding: 0px; margin: 0px; outline: none; list-style: none; letter-spacing: 0px;">≥7.4 kN
style="padding: 0px; margin: 0px; outline: none; list-style: none; letter-spacing: 0px;">Insertion force
style="padding: 0px; margin: 0px; outline: none; list-style: none; letter-spacing: 0px;">≥15.5 kN
style="padding: 0px; margin: 0px; outline: none; list-style: none; letter-spacing: 0px;">Working efficiency
style="padding: 0px; margin: 0px; outline: none; list-style: none; letter-spacing: 0px;">≥260 slepers/hour
style="padding: 0px; margin: 0px; outline: none; list-style: none; letter-spacing: 0px;">Tamping insertion depth
style="padding: 0px; margin: 0px; outline: none; list-style: none; letter-spacing: 0px;">90~120mm under seepers
style="padding: 0px; margin: 0px; outline: none; list-style: none; letter-spacing: 0px;">Dimensions
style="padding: 0px; margin: 0px; outline: none; list-style: none; letter-spacing: 0px;">1420x660x1380 mm
style="padding: 0px; margin: 0px; outline: none; list-style: none; letter-spacing: 0px;">Weight
style="padding: 0px; margin: 0px; outline: none; list-style: none; letter-spacing: 0px;">360 kg
