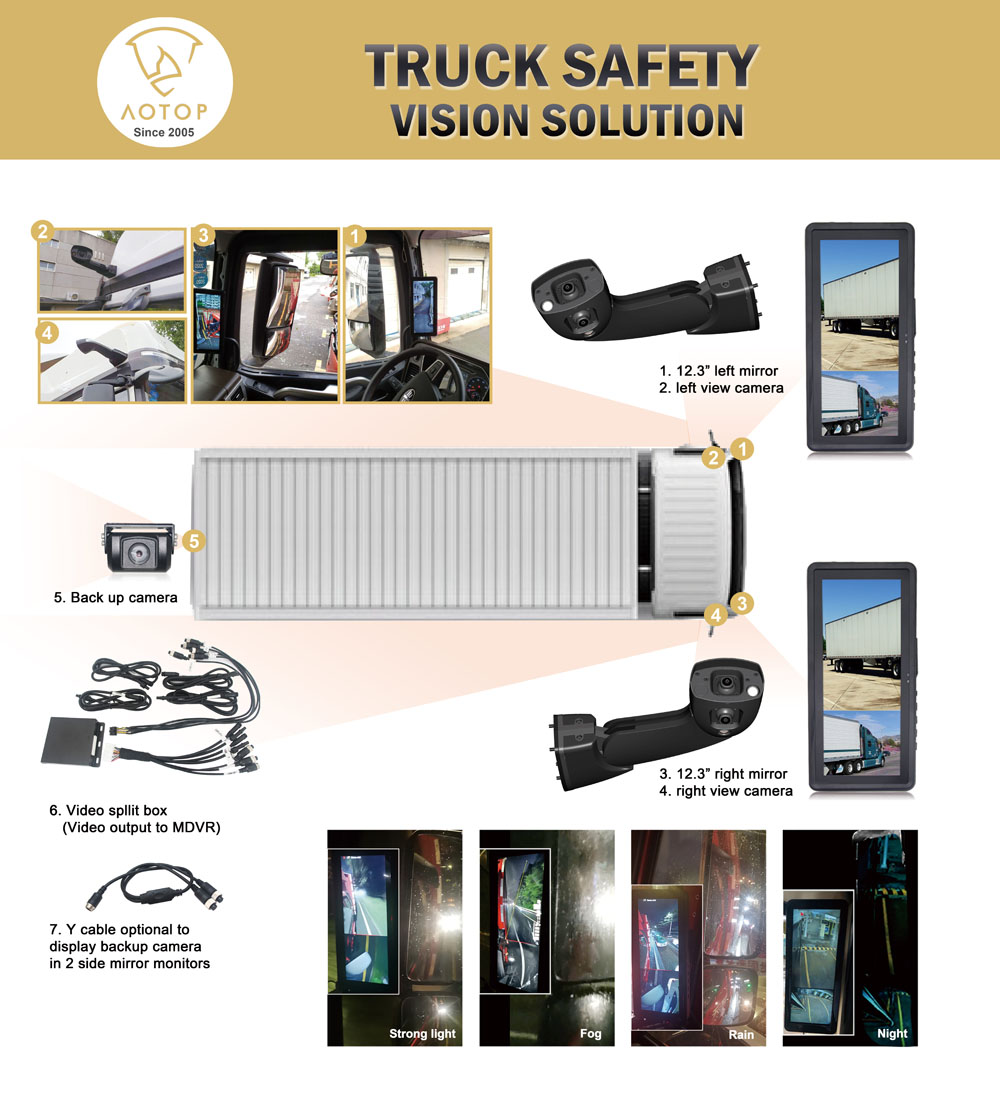

VD-1237 Replace bus mirrors with a camera system
VD-1237 Replace bus mirrors with a camera system, VD-1237Item Code / Model Number:
VD-1237
VD-1237 Replace bus mirrors with a camera system
Side Mirrors Rear View System--VD1237
12.3 Inch Screen,1080P Dual Video Recording,
Compact Camera Design, Reversing for option
Item | VD1237 |
Screen | 12.3 Inch IPS Screen , support split view |
Resolution | 1920*720 |
Screen view angle | Up, down, right, left are all more than 170 degree |
Material of housing | PC+ABS, plastic injection molding, Anti-flaming UL94 |
Operation | 5 Mechanical keys |
IP69K Waterproof Camera | 1920*1080p |
View angle | Distant view camera: 83 degree(H)*50 degree(V); Nearby view camera: 120 degree(H)*65 degree(V); |
Storage | 128GB SD card |
Other functions | Screen auto control; LED auto control; Camera auto heating; |
Power supply | Vehicle battery (fuse box) |
Working voltage | B+: +12V/24V; ACC: +12V/24V; GND: Ground; |
Max.current | <2A(12V) / <1A(24V) |
Standby current | <5mA |
Operating temperature | -30 degree~+70 degree(RH0%-RH90%) |
Storage temperature | -40 degree~+85 degree(RH0%-RH90%) |
- Place of Origin:
- China
- Brand:
- AOTOP
- Unit Price:
- USD 3OO
- Price Terms:
- FOB SHENZHEN
- Packing:
- White Box
- Payment Terms:
- L/C;D/A;T/T
- Delivery Time:
- 10 days
- Min Order Quantity:
- 20
- Standard / Certificates:
- CE, FCC, EMARK
- Keywords:
- backup camera, backup camera system, mirror camera system
