BlueROV battery
BlueROV battery, : BATTERY-LI-6S-28AH-V3
BlueROV battery

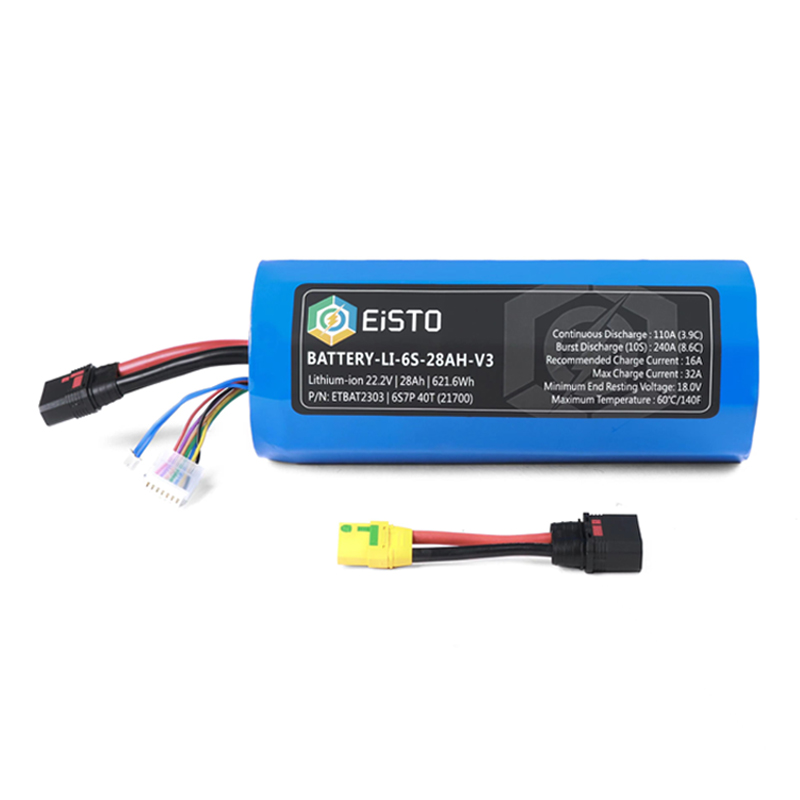

Model: BATTERY-LI-6S-28AH-V3
P/N:ETBAT2303
The Lithium-ion Battery(22.2V,28Ah),model:BATTERY-LI-6S-28AH-V3 is a high capacity customized battery pack,which is designed to fit perfectly inside a 4‘‘ series watertight enclosures!
● High Capacity made from high quality Samsung 40T Cells
● A wide range of applications,batteries are designed for use in subsea vehicles,power output for serious underwater ROVs,USVs and other vehicles
● Long Cycle Life and Economical Friendly
● Long charge and discharge cycles,which makes it extremely economical, and provides an expected life for the device that it is used
● Excellent high discharge characteristics: with low internal resistance and high, flat voltage characteristics during strong current discharge, which ensures a wider application field
● With long storage life with few limiting conditions
● Good quality,all of them are A+ Grade Cells, full inspection before assembling and shipping
1. Technical Details - Specification:
| |||
No. | Items | Specification | |
1 | Nominal Voltage | 22.2V | |
2 | Nominal Capacity | 28Ah | 621.6Wh |
3 | Cell Model | High-quality Samsung 21700-40T cells | |
4 | Cell Configuration | 6S 7P | |
5 | Maximum Continuous Current Draw * | 110A | 3.9C (This battery is CE approved,UN38.3 approved,with MSDS,certificates can be provided upon request) |
6 | Maximum Burst Current Draw * | 240A(10s) | 8.6C |
7 | Standard Charge Current | 5.6A | 0.2C |
8 | Recommended Charge Current | 16A | 0.57C |
9 | Maximum Charge Current | 32A | 1.2C |
10 | Minimum Safe Voltage | 18.0V | 3.0V/Cell |
11 | Fully charge voltage(FC)/Charge cut-off voltage | 25.2V | 4.20V/Cell |
12 | Balance Plug | 7 pin JST-XH | |
13 | Discharge Connector | QS8-S (XT90S adapter included) | |
14 | Thermistor Plug | 2 pin JST-XH (NTC,β=3435K,R25=10KΩ,±1%(at 25℃) | |
15 | Physical (Maximum Size): | ||
16 | Diameter | 98.5mm (MAX) | |
17 | Cells Length | 230mm (MAX) | |
18 | Lead Length | 85mm | |
19 | Weight | 3.23Kgs | |
