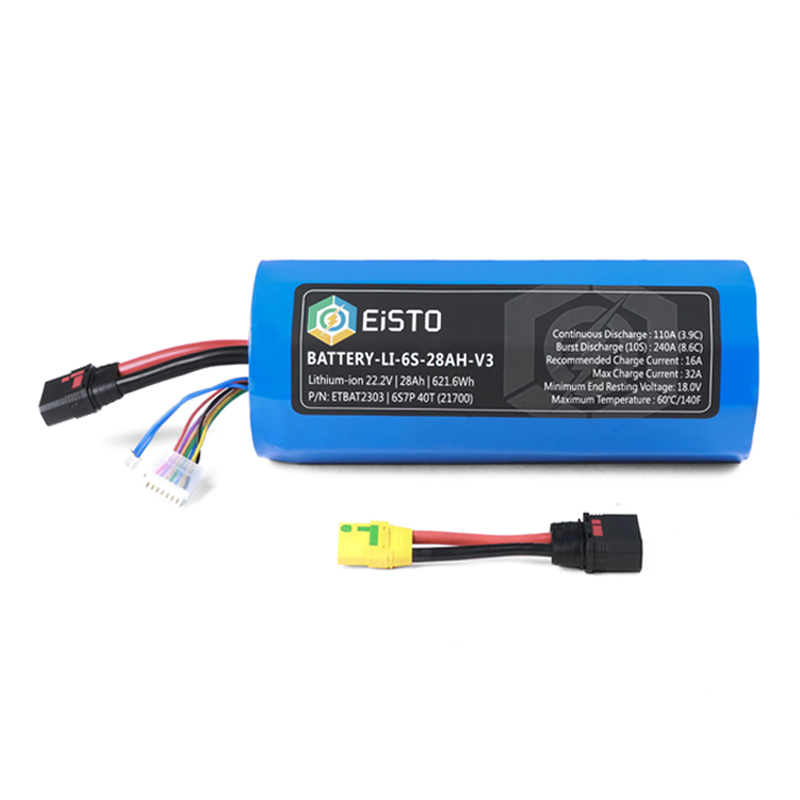

Model: BATTERY-LI-6S-28AH-V3
P/N:ETBAT2303
The Lithium-ion Battery(22.2V,28Ah),model:BATTERY-LI-6S-28AH-V3 is a high capacity customized battery pack,which is designed to fit perfectly inside a 4‘‘ series watertight enclosures!
● High Capacity made from high quality Samsung 40T Cells
● A wide range of applications,batteries are designed for use in subsea vehicles,power output for serious underwater ROVs,USVs and other vehicles
● Long Cycle Life and Economical Friendly
● Long charge and discharge cycles,which makes it extremely economical, and provides an expected life for the device that it is used
● Excellent high discharge characteristics: with low internal resistance and high, flat voltage characteristics during strong current discharge, which ensures a wider application field
● With long storage life with few limiting conditions
● Good quality,all of them are A+ Grade Cells, full inspection before assembling and shipping
1. Technical Details - Specification:
No.
Items
Specification
1
Nominal Voltage
22.2V
2
Nominal Capacity
28Ah
621.6Wh
3
Cell Model
High-quality Samsung 21700-40T cells
4
Cell Configuration
6S 7P
5
Maximum Continuous Current Draw *
110A
3.9C (This battery is CE approved,UN38.3 approved,with MSDS,certificates can be provided upon request)
6
Maximum Burst Current Draw *
240A(10s)
8.6C
7
Standard Charge Current
5.6A
0.2C
8
Recommended Charge Current
16A
0.57C
9
Maximum Charge Current
32A
1.2C
10
Minimum Safe Voltage
18.0V
3.0V/Cell
11
Fully charge voltage(FC)/Charge cut-off voltage
25.2V
4.20V/Cell
12
Balance Plug
7 pin JST-XH
13
Discharge Connector
QS8-S (XT90S adapter included)
14
Thermistor Plug
2 pin JST-XH (NTC,β=3435K,R25=10KΩ,±1%(at 25℃)
15
Physical (Maximum Size):
16
Diameter
98.5mm (MAX)
17
Cells Length
230mm (MAX)
18
Lead Length
85mm
19
Weight
3.23Kgs
