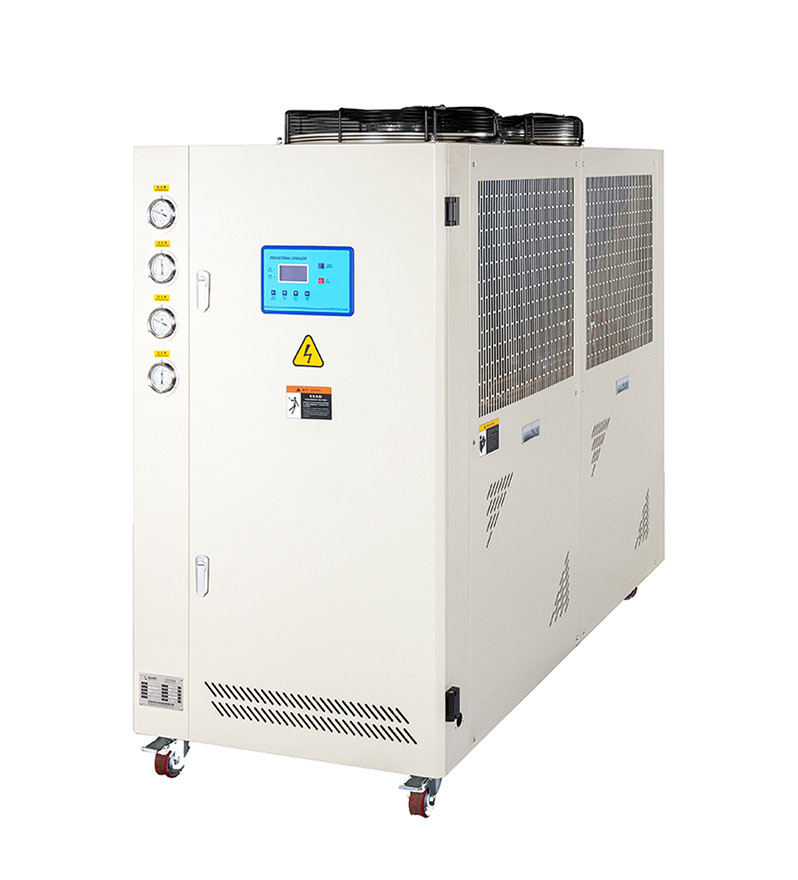

Air Cooled Scroll Industrial Chiller for Plastic Application

Air cooled scroll chiller features
World famous brand compressor: Panasonic,Sanyo,Copeland,Danfoss
Stainless steel centrifugal pump
Copper tube condenser
Easy installation,operation and maintenance
Air cooled scroll chiller specifications
Model
CK-0.5A
CK-1A
CK-2A
CK-3A
CK-5A
CK-6A
CK-8A
CK-10A
CK-12A
CK-15A
CK-20A
CK-25A
CK-30A
CK-40A
Water temperature range
7-30℃
Control accuracy
±0.5℃&±1.5℃
Communication(Optional)
RS485 communication interface,MODBUS communication protocol
Cooling Capacity
kW
1.5
2.6
5.3
9.0
15.0
18.0
24.0
30.0
36.0
45.0
58.0
68.0
85.0
115.0
Power supply
220
V
/1
PH
/50
Hz
380/415/440V/3PH/50/60Hz
Rated power
kW
0.8
1.3
2.2
3.2
5.5
5.8
7.9
9.8
10.8
13.8
20.0
22.0
30.0
37.0
Working current
A
3.5
6.5
10.0
7.0
11.5
12.6
15.0
18.0
21.0
28.5
38.0
41.0
60.0
71.5
Compressor
Type
High efficiency rotary type
Flexible scroll type
Power
kW
0.5
0.75
1.6
2.4
4.2
4.8
6.7
8.6
9.2
11.6
16.2
18.0
25.0
30.5
Pump
Type
Stainless steel centrifugal type
Power
kW
0.25
0.37
0.37
0.55
0.55
0.55
0.55
0.75
1.2
1.2
1.85
1.85
1.85
3.0
Lift
m
18
27
26
24
24
25
25
26
27
25
22
22
20
22
Water flow
m3/h
0.26
0.45
0.90
1.6
2.6
3.1
4.1
5.2
6.2
7.8
10.0
11.7
14.6
19.8
L/min
4.3
7.5
15
27
43
52
68
87
103
130
167
196
243
329
Condenser type
High efficiency copper finned tube with internal thread
Evaporator type
Stainless steel shell and tube type
Refrigerant
R22/R407C/R410A
Refrigerant Control
Capillary
Thermostatic expansion valve
Tank volume
L
12
20
35
60
70
70
100
155
155
230
230
230
300
300
Inlet and outlet size
DN
15
15
20
25
25
25
25
40
40
40
50
50
50
50
Noise
dB(A)
62
65
65
68
68
69
69
69
69
70
68
68
70
70
Weight
kg
48
85
115
162
195
245
270
310
345
390
580
760
880
1050
Dimension
L
mm
420
600
600
1000
1200
1200
1600
1600
1600
1850
2000
2000
2450
3000
W
mm
420
520
600
550
600
600
750
750
750
900
1050
1050
1050
1200
H
mm
800
875
1075
1150
1200
1200
1400
1400
1425
1550
1650
1650
1700
1850
