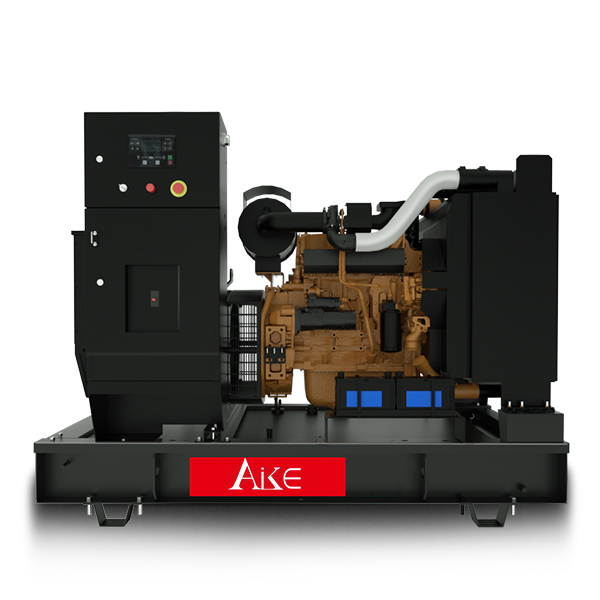

300kW/375kVA SDEC Power Diesel Generator with Denmark DEIF Controller
300kW/375kVA SDEC Power Diesel Generator with Denmark DEIF Controller, AS413300kW/375kVA SDEC Power Diesel Generator with Denmark DEIF Controller , Power generator set
Shangchai Diesel Engine, Diesel Generator set 50HZ/1500RPM,380/220V,400/230V,415/240V can be adjustable, Open Type, weatherproof type or soundproof type, trailer type and so on.
Also have 60HZ/1800RPM,voltage is 220/127V,380/220V,440/254V can be option
ATS can be option
Controller brand: UK Deepsea, Czech ComAp, Denmark DEIF, Smartgen China
Generator Standard Compose:
- Meet the environmental temperature 40 ℃ water tank radiator, Driving belt cooling fans, with fan safety shield
- 24 V charging generators
- Generator: Single bearing generator, IP23 Grading Protection, H Insulation degree
- Shock absorber
- Dry air filter, Fuel filter, Oil filter
- Power output circuit breaker
- Standard control panel
- 12 V battery and battery connection cables
- Battery Charger
- Exhaust pipe, Bellows, Flange, Muffler set
- 8 hours’ base tank
- Documents and Manuals
Model | Standby Power | Prime Power | Model | Bore×Stroke | Engine fuel consumption | Weight | Lube Volume | Dimensions | ||
LxWxH) | ||||||||||
kVA | kW | kVA | kW | (mm) | (L/h) | (Kg) | (L) | (mm) | ||
AS11 | 11 | 8.8 | 10 | 8 | 3Z1.1-G42 | 78x78.4 | 2.8 | 220 | 4 | 1400*620*1100 |
AS14 | 13.75 | 11 | 12.5 | 10 | 3ZT1.1-G42 | 78x78.4 | 3.6 | 220 | 4 | 1400*620*1100 |
AS17 | 16.5 | 13.2 | 15 | 12 | 4Z2.3-G21 | 85x100 | 4.6 | 440 | 5.5 | 1600*830*1200 |
AS23 | 22 | 17.6 | 20 | 16 | 4Z2.7-G21 | 90x105 | 6 | 520 | 6.5 | 1600*830*1200 |
AS28 | 27.5 | 22 | 25 | 20 | 4Z3.0-G21 | 95x105 | 7.4 | 530 | 6.5 | 1600*830*1200 |
AS34 | 34.38 | 27.5 | 31.3 | 25 | 4Z3.2-G21 | 98x105 | 8.8 | 530 | 6.5 | 1600*830*1200 |
AS44 | 44 | 35.2 | 40 | 32 | 4ZT3.2-G21 | 98x105 | 10.7 | 550 | 6.5 | 1600*830*1200 |
AS55 | 55 | 44 | 50 | 40 | 4ZT3.5-G21 | 98x115 | 12.5 | 570 | 6.5 | 1600*830*1200 |
AS69 | 68.75 | 55 | 62.5 | 50 | 4ZT4.1-G21 | 105x118 | 15.4 | 620 | 6.5 | 1600*830*1200 |
AS76 | 75.63 | 60.5 | 68.8 | 55 | 4ZTAA4.1-G21 | 105x118 | 16.4 | 735 | 6.5 | 1600*830*1200 |
AS88 | 88 | 70.4 | 80 | 64 | 4ZTAA4.1-G31 | 105x118 | 16.4 | 740 | 6.5 | 1600*830*1200 |
AS55 | 55 | 44 | 50 | 40 | 4HT4.3-G21 | 105×124 | 14.5 | 960 | 13 | 1750*995*1435 |
AS69 | 68.75 | 55 | 62.5 | 50 | 4HT4.3-G22 | 105×124 | 15.9 | 1000 | 13 | 1750*995*1435 |
AS88 | 88 | 70.4 | 80 | 64 | 4HT4.3-G23 | 105×124 | 18.3 | 1080 | 13 | 1750*995*1435 |
AS110 | 110 | 88 | 100 | 80 | 4HTAA4.3-G21 | 105×124 | 21.4 | 1123 | 13 | 1750*995*1480 |
AS124 | 123.8 | 99 | 113 | 90 | 4HTAA4.3-G23 | 105×124 | 24 | 1123 | 13 | 1750*995*1480 |
AS138 | 137.5 | 110 | 125 | 100 | 4HTAA4.3-G22 | 105×124 | 27.5 | 1123 | 13 | 1750*995*1480 |
AS151 | 151.3 | 121 | 138 | 110 | 6HTAA6.5-G21 | 105×124 | 28.7 | 1412 | 17.5 | 2400*1025*1535 |
AS165 | 165 | 132 | 150 | 120 | 6HTAA6.5-G22 | 105×124 | 31.2 | 1412 | 17.5 | 2400*1025*1535 |
AS206 | 206.3 | 165 | 188 | 150 | 6HTAA6.5-G23 | 105×124 | 41.3 | 1412 | 17.5 | 2400*1025*1535 |
AS220 | 220 | 176 | 200 | 160 | 6DTAA8.9-G21 | 114×144 | 42 | 1670 | 19 | 2500*1055*1660 |
AS248 | 247.5 | 198 | 225 | 180 | 6DTAA8.9-G24 | 114×144 | 49.3 | 1835 | 19 | 2600*1190*1830 |
AS275 | 275 | 220 | 250 | 200 | 6DTAA8.9-G23 | 114×144 | 54.2 | 1835 | 19 | 2600*1190*1830 |
AS344 | 343.8 | 275 | 313 | 250 | 6ETAA11.8-G22 | 128×153 | 62.5 | 2240 | 41 | 3065*1105*1626 |
AS385 | 385 | 308 | 350 | 280 | 6ETAA11.8-G21 | 128×153 | 71.6 | 2240 | 41 | 3065*1105*1626 |
AS413 | 412.5 | 330 | 375 | 300 | 6ETAA12.8-G22 | 130×161 | 81.2 | 1640 | 36 | 3065*1105*1626 |
AS440 | 440 | 352 | 400 | 320 | 6ETAA12.8-G21 | 130×161 | 85.6 | 1640 | 36 | 3065*1105*1626 |
AS440 | 440 | 352 | 400 | 320 | 6ETAA12.8-G32 | 130×161 | 96.1 | 2700 | 36 | 3100*1105*1626 |
AS495 | 495 | 396 | 450 | 360 | 6ETAA12.8-G31 | 130×161 | 99.1 | 2700 | 36 | 3300*1105*1626 |
AS550 | 550 | 440 | 500 | 400 | 6ETAA12.8-G310 | 130×161 | 99.1 | 2800 | 36 | 3400*1105*1626 |
AS550 | 550 | 440 | 500 | 400 | 6KTAA25-G311 | 130×161 | 102 | 4770 | 70 | 3900*1608*2109 |
AS619 | 618.8 | 495 | 563 | 450 | 6KTAA25-G310 | 170×185 | 110 | 4970 | 70 | 3900*1608*2109 |
AS688 | 687.5 | 550 | 625 | 500 | 6KTAA25-G39 | 170×185 | 125 | 5060 | 70 | 3900*1608*2109 |
AS770 | 770 | 616 | 700 | 560 | 6KTAA25-G38 | 170×185 | 139 | 5260 | 70 | 3900*1608*2109 |
AS550 | 550 | 440 | 500 | 400 | 6KTAA25-G36 | 170×185 | 154 | 4770 | 70 | 3900*1608*2109 |
AS619 | 618.8 | 495 | 563 | 450 | 6KTAA25-G35 | 170×185 | 111 | 5060 | 70 | 3900*1608*2109 |
AS688 | 687.5 | 550 | 625 | 500 | 6KTAA25-G34 | 170×185 | 124 | 5260 | 70 | 3900*1608*2109 |
AS770 | 770 | 616 | 700 | 560 | 6KTAA25-G33 | 170×185 | 136 | 5260 | 70 | 3900*1608*2109 |
AS825 | 825 | 660 | 750 | 600 | 6KTAA25-G32 | 170×185 | 148 | 5260 | 70 | 3900*1608*2109 |
AS990 | 990 | 792 | 900 | 720 | 6KTAA25-G31 | 170×185 | 163 | 5400 | 70 | 4191*1608*2109 |
AS1100 | 1100 | 880 | 1000 | 800 | 6KTAA25-G320 | 170×185 | 180 | 5800 | 70 | 4391*1608*2109 |
AS1238 | 1238 | 990 | 1125 | 900 | 6KTAA25-G321 | 170×185 | 190 | 5800 | 70 | 4391*1608*2109 |
FAQ
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.
Q: What is your lead time?
A: About 15-25 days after receiving advance deposit or original L/C.
Q: What certificates do you have?
A: We have ISO And we can apply for specific certificates for different countries such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.
Q: What warranty do you provide?
A: One year or 1200hours’ running whichever occurs first, during the guarantee period, we will supply free of the easily damaged parts for the possible problems except for the incorrect operation. After expiration, we supply cost spare parts for Genset maintenance.
- Place of Origin:
- Guangdong China
- Brand:
- SDEC power
- Unit Price:
- USD 23882
- Price Terms:
- FOB Shenzhen
- Packing:
- plastic wrap or wooden case
- Payment Terms:
- L/C;T/T
- Delivery Time:
- 10-25 days days
- Min Order Quantity:
- 1
- Keywords:
- sdec
