Twin-shaft horizontal mixer

Twin-shaft horizontal mixer with compact design has the advantage of small floor space occupied, which is helpful for the inatallation in your plant and retrofitting exist concrete batching plants. It can be used independently, also can be used in the dry mortar mixing plant or tower and is applicable to the normal construction project, road, bridge site, or dry mortar production factory.
​

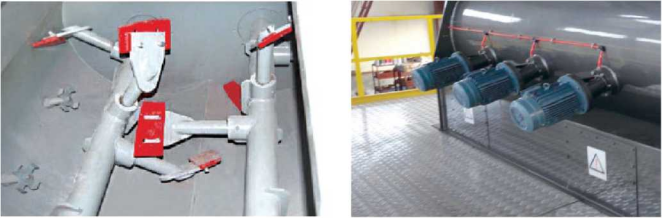

1.The double shafts along with the replaceable wear-resistant paddles run in counter-rotation to turn over the materials.

2.All the materials will be lifted into non-gravity status and then fall down to form a cross mixing.

3.Thus we can get perfect mixing in very short time and almost all the materials can be emptied through full bottom discharge valve.

4.Besides, the mixer can be equipped with several flying knives, which can break up the materials and make short mixing time and good mixing result, especially for the agglomerated materials.
​
Both the wear-resistant paddles and the choppers have improved the mixing stability, mixing quality, mixing speed, and keep long-term service life.
​
The technical parameters are as follows:

Model	Volume/L	Power/KW	Weight/KG	Load factor	Flying-cutter/SET
SW500	500	7.5	1000	≤0.7	4
SW1000	1000	11-15	2500	≤0.7	4
SW2000	2000	18.5-37	3500	≤0.7	4
SW3000	3000	37-45	4000	≤0.7	4
SW4000	4000	45-75	5000	≤0.7	4
SW6000	6000	75-100	6000	≤0.7	6
SW10000	10000	100-150	9000	≤0.7	6

​
