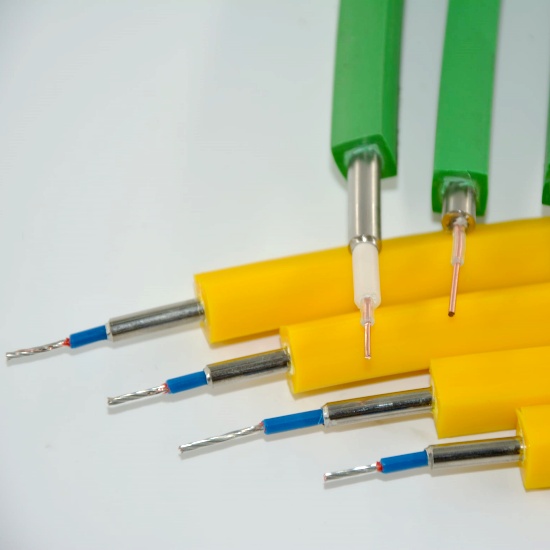

TEC CABLE

Product Name: 16AWG, 825 Alloy Steel Tubing Encapsulated Cable

Conductor: 16AWG, 7×0.487mm Bare/Tinned Stranded Copper Conductor, OD: 1.47mm

Insulation: FEP Insulation T-01, OD: 2.60mm

Jacket: PPV Material, OD: 4.572mm

Tubing: Incoloy 825 Tube, OD 6.35mm with 0.889mm Wall Thickness

Encapsulation: 11mm in Round Shape or Square Shape

External Collapse Pressure: 32000 psi

Rated Working Pressure: 16000 psi

Min. Tensile Strength: 12 KN

Yield Strength: 280 Mpa

Cable Weight: 145 KG/KM

Packing: 15000FT per spool or 33000FT per spool
