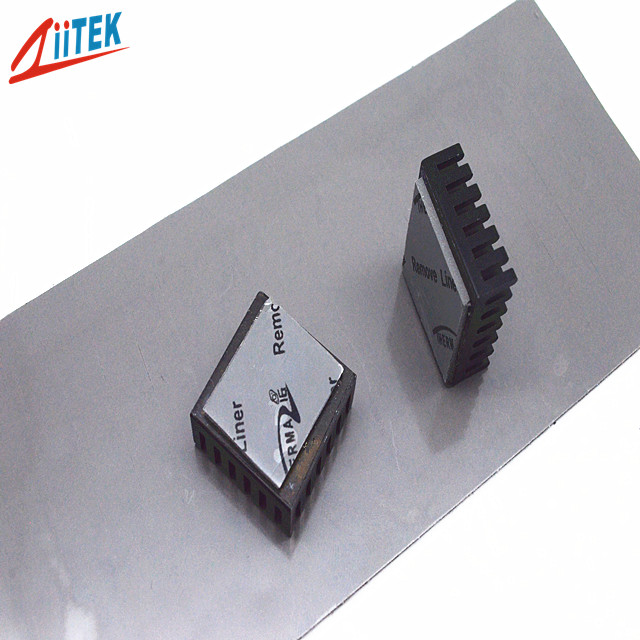

Thermal Silicone Pad 5.0W High Conductivity Heat Dissipation Sheet For AI Servers, Inverters, Teleco

The TIF
®
500-50-11US Series
 is an ultra soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with extreme gel grade flexibility to achieve a perfect fit with low stress.It is suitable for solving problems such as large tolerances,uneven surfaces, and susceptibility of precision components to mechanical damage in high-precision assembly.

Features:
>  Good thermal conductivity:
 5.0
W/mK
> Ultra soft and highly compliant
>  Self-adhesive without the need for additional surface adhesives
>  Good insulation performance
Applications

>  AI Servers, Inverters, Telecom Devices
>  Power tools
>  Network communication products
>  Electric vehicle batteries Computer CPU/GPU Cooling
>  New energy vehicle power systems

Typical Properties of TIF
®
500-50-11US Series
Property
Value
Test method
Color
Dark Gray
Visual
Construction & Compostion
Ceramic filled silicone elastomer
******
Density(g/cm³)
3.4
ASTM D792
Thickness Range(inch/mm)
0.010~0.020
(0.25~0.50)
0.030~0.200 (0.75~5.0)
ASTM D374
Hardness
65 Shore 00
20 Shore 00
ASTM 2240
Recommended Operating Temperature
-40 to 200℃
******
Breakdown Voltage(V/mm)
≥5500
ASTM D149
Dielectric Constant
4.5 MHz
ASTM D150
Volume Resistivity
＞1.0X10
12
 Ohm-meter
ASTM D257
Flame rating
V-0
UL 94 (E331100)
Thermal conductivity
5.0 W/m-K
ASTM D5470
5.0 W/m-K
ISO22007

Product Specifications
Standard Thickness: 0.010"(0.25 mm)-0.20" (5.00 mm) with increments of 0.010 inch (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm)
Component Codes:

Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF
®
 series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
