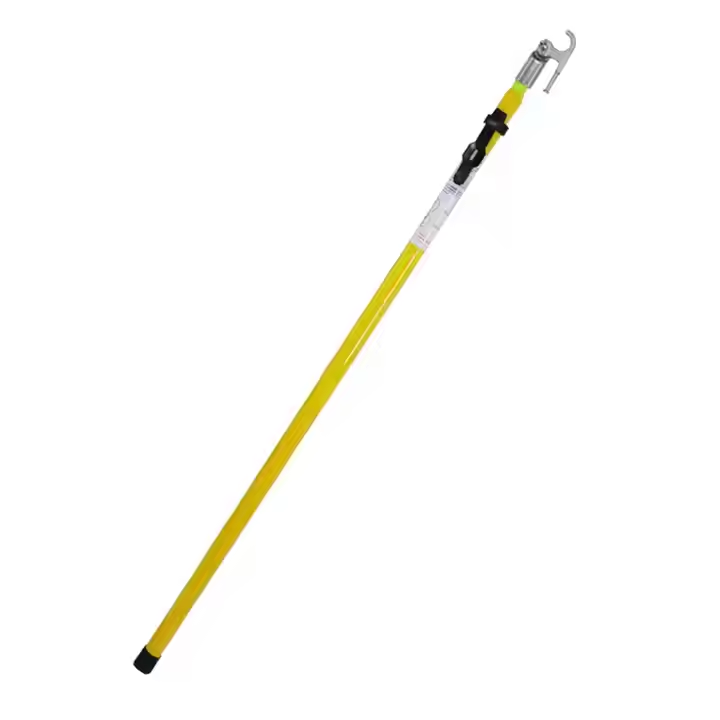

Triangle Tube of the Telescoping Hot Stick

The triangle tube of the telescoping hot stick have maximum convenience for the lineman
because they permit them to perform many routine jobs from ground level. The universal
end fitting on the insulated top section accepts a wide variety of attachments, so the
lineman can disconnect switches, replace cutout tubes and reclose, remove pole covers,
prune trees, replace bulbs and complete many other overhead tasks.
The triangular tube section is shown as below pictures, approximate triangular arc is the
most comfortable shape of hand grip. approximately triangular shape can avoid axial
sliding during torsional operation. Compared with the traditional round tube, it is more
stable, easy to connect to the operating part and easy operation.
1.Applied Standard: IEC60855, ASTM F711.
2.Parts Material：
Universal head with hook: aluminum alloy in nature color
Tube : Top section: Foam filled fiberglass tube in
fluorescence green,
Other sections: Fiberglass tube in yellow
Handle: Insulation rubber in black
Bag: Water-proof Nylon bag in green
3. Product features：
3.1 Unique design - approximately triangular tube structure,
each section can be quickly telescopic positioning, no need
to turn the joint to find the buckle and fixed.
3.2 High visibility - The outer layer of the top tube is
fluorescent paint for easy identification during operation,
the inner part is filled with moisture-proof insulating foam to
prevent moisture accumulation.
3.3 Easy to operate -New large button with same size, easy
to operate even with insulating gloves.
3.4 Easy to maintain - the sticks body is smooth and non
porous, easy for daily cleaning and waxing.
3.5 Multi-function - high strength aluminum alloy universal
joint, can firmly connect all
kinds of tool heads.
3.6 Various specifications - Extract length from 2.43 to 1
5
meters, retract length from 0.8 to 2.15 meters.
3.7 High electrical insulation strength - All products are
passed 100kV/300mm power frequency voltage test.
Products Code
Extract Length
M
Retract Length
M
Sections
Base diameter
mm
Approximate Weight
kg
212001
2.43
0.8
5
44.60
1.40
212002
3.80
1.48
3
37.00
1.85
212003
5.00
1.53
4
40.40
2.6
212004
6.43
1.59
5
44.60
3.4
212005
7.80
1.65
6
48.40
4.25
212006
9.21
1.70
7
52.40
5.10
212007
10.60
1.75
8
56.50
6.0
212008
12.00
1.79
9
60.30
7.2
212009
15.00
2.15
9
60.30
9.0
