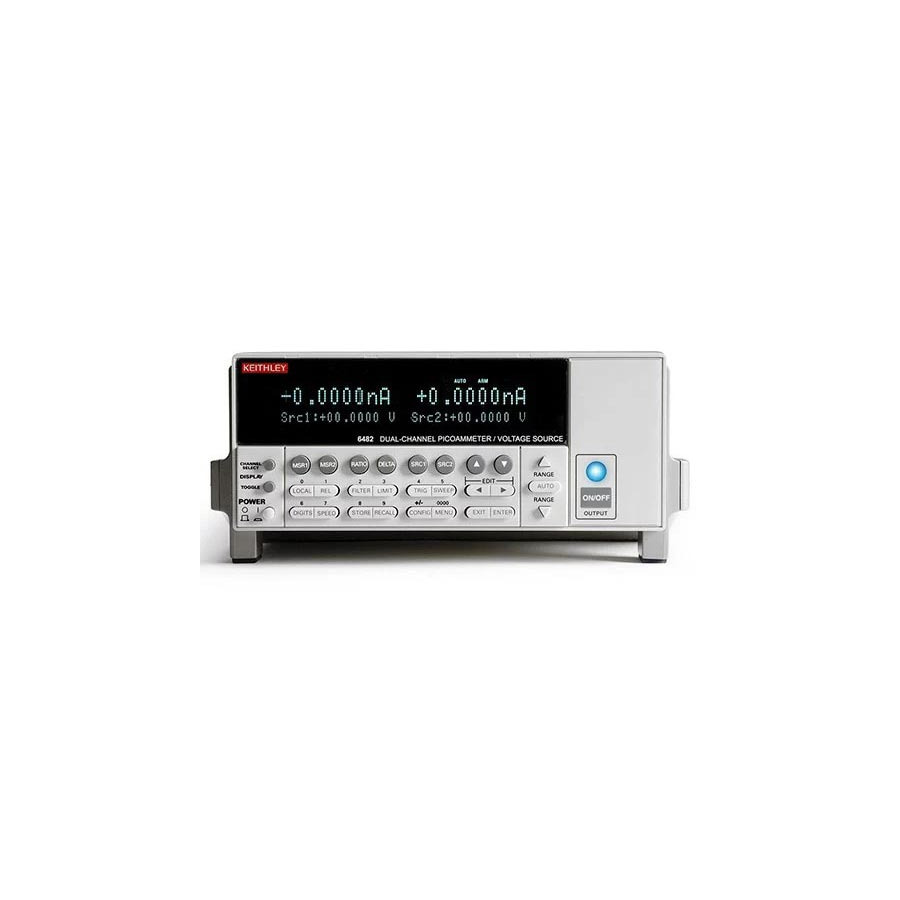

Keithley 6482 Precision Picoammeter – Available at Navaro Calibration.

Product Overview

The Keithley 6482 Picoammeter/Voltage Source is a high-performance instrument that combines the capabilities of a picoammeter and a voltage source in a single, compact package. It offers exceptional accuracy, sensitivity, and stability, making it ideal for a wide range of applications in research, development, and manufacturing.

Features and Specifications

Picoammeter:
Measurement range: 10 fA to 20 mA
Accuracy: ±0.05% of reading
Resolution: 1 fA
Voltage Source:
Output range: ±20 V
Accuracy: ±0.05% of setting
Resolution: 100 nV
Other Features:
4-quadrant operation
Auto-ranging
Built-in data logging
GPIB and RS-232 interfaces

What’s in the Box

Keithley 6482 Picoammeter/Voltage Source
Power cord
GPIB cable
RS-232 cable
User manual
