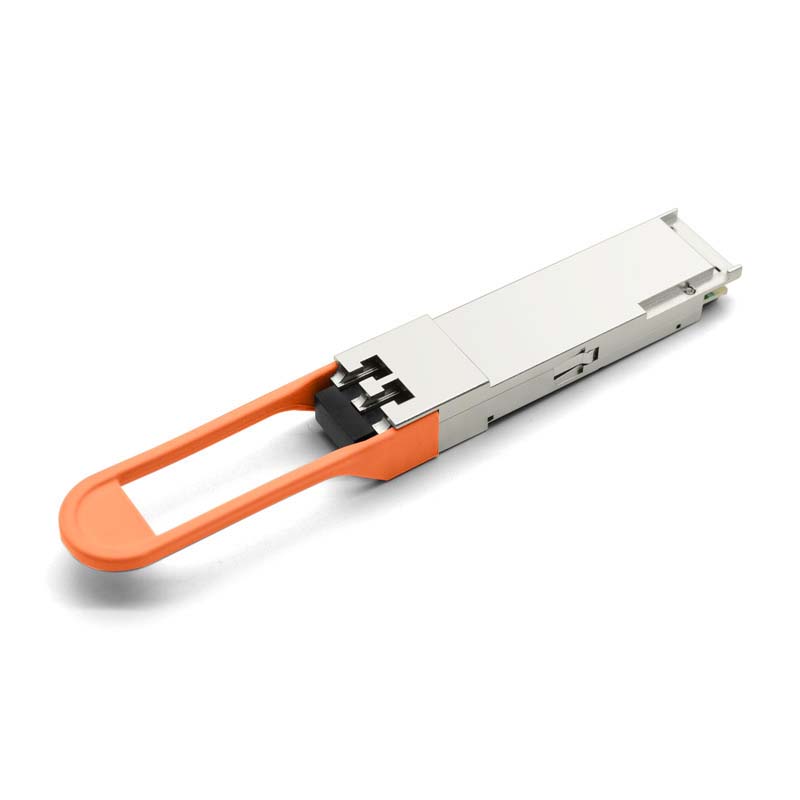

100G QSFP28 1310nm 40km DOM SMF Transceiver
100G QSFP28 1310nm 40km DOM SMF Transceiver, QSFP-100G-ER4Item Code / Model Number:
QSFP-100G-ER4
100G QSFP28 1310nm 40km DOM SMF Transceiver
QSFP-100G-ER4 Optical Transceiver Module is designed for using in 100GBase Ethernet throughput up to 40km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connector. It is compliant with IEEE 802.3ba 100GBase-LR4 and IEEE 802.3bm CAUI-4 standard. Widely used in 100G Ethernet, telecom and data center.
• Compliant with 100GBASE-ER4
• Support data rate from 103.125Gbps to 111.81Gbps
• Integrated LAN WDM TOSA/ROSA for up to 40km over SMF with FEC
• Digital diagnostic monitor compatible with SFF-8472
• Hot pluggable capability
• Compliant with QSFP28 MSA with LC connector
• Operating temperature: 0°C to 70°C
• Power dissipation: <3.5W
• Single power supply: 3.3V
• RoHS Compliant
- Place of Origin:
- China
- Brand:
- No
- Unit Price:
- USD 99
- Price Terms:
- EXW Shenzhen
- Packing:
- Carton
- Payment Terms:
- T/T;Cash
- Delivery Time:
- 7 days
- Min Order Quantity:
- 5
- Standard / Certificates:
- CE, ROHS, UL
- Keywords:
- 100g qsfp28, 100g transceiver, optical module
