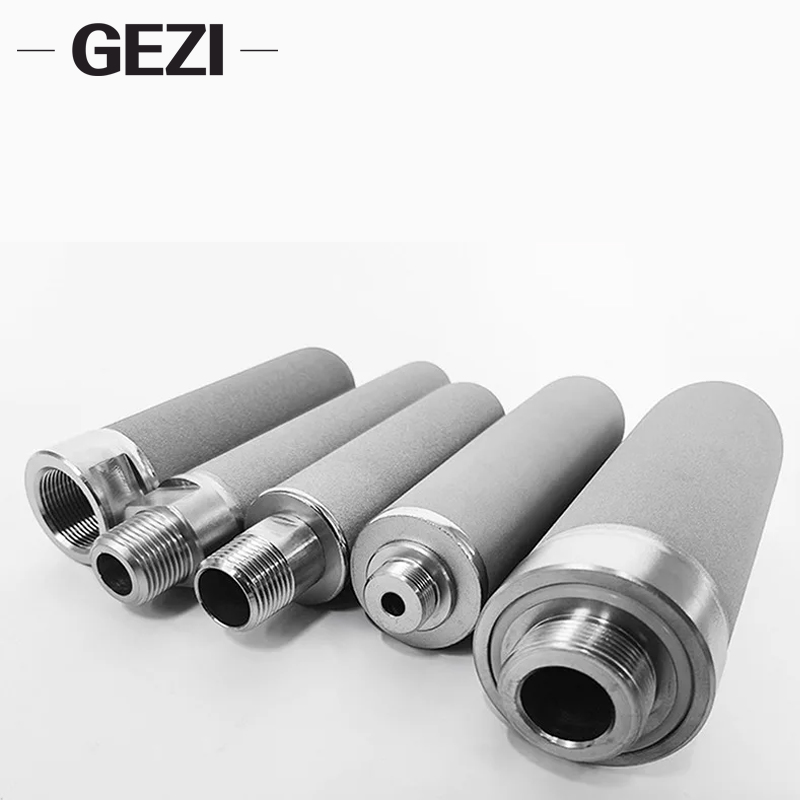

Stainless Steel Ss Titanium Sintered Filter Cartridge

Stainless steel Powder Sintered Filter Cartridge
Material
Stainless Steel SS304, SS316L (customizable)
Cartridge Structure
Multi-layer sintered metal mesh
Filtration Accuracy
0.5μm - 100μm
Working Temperature
-200°C - 600°C
Working Pressure
≤ 3.0 MPa (higher pressure customizable)
Connection Type
Thread, Flange, Clamp, 222/226
Length
5", 10", 20", 30", 40" (or customized)
OD
30mm, 60mm, 63mm (customizable)
Cartridge Type
Cylindrical, Pleated
Applications
Chemical, Food, Pharmaceutical, Water Treatment, Gas Filtration, etc.
Titanium Powder Sintered Filter Cartridge
Material
High purity titanium powder (>99.6%)
Porosity
30%-45%
Filtration Accuracy
0.2μm - 100μm
Working Temperature
-200°C to +280°C
Operating Pressure
≤ 3.5 MPa (customizable for higher)
Connection Type
Thread, Flange, Clamp, Welded, Custom
Length
5", 10", 20", 30", 40" (or customized)
OD
30mm, 50mm, 60mm (customizable)
Cartridge Type
Cylindrical
Applications
Pharmaceutical, Electronics, Gas Purification, Water Treatment, High-Temperature Liquid Filtration.
​
​
