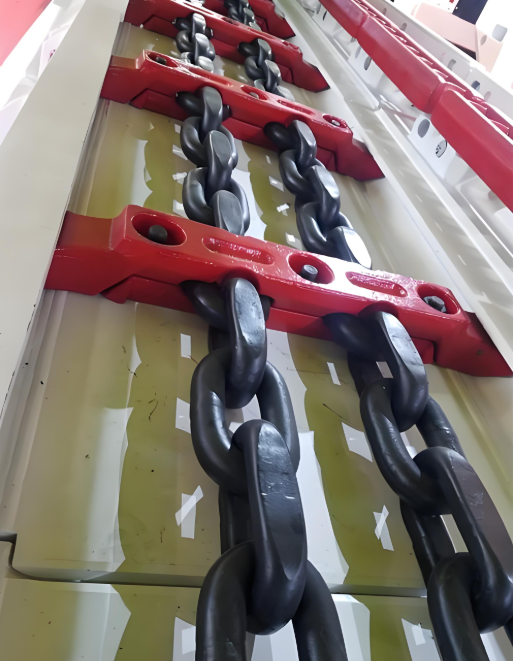

High-Intensity Compact Chain
High-Intensity Compact Chain, SBG620/40TItem Code / Model Number:
SBG620/40T
High-Intensity Compact Chain
High-Intensity Compact Chain（SGB620/40T）
Modal:SBG620/40T
Specification(mm)：22X86
Diameter d (mm):Diameter d (mm):22;Tolerance:±0.7
Width c(ma*mm):26
Pitch P:Nominal size:86;Tolerance:±0.9
Inner width a(max.mm):26
Parallel outer width b1(max.mm):77
Vertical ring outer width b2(max.mm):60
Mass per unit(kg/m):8.9
- Place of Origin:
- China
- Price Terms:
- FOB Qingdao
- Packing:
- Wooden Box
- Payment Terms:
- L/C;T/T
- Delivery Time:
- 30 days
- Min Order Quantity:
- 1 piece
- Standard / Certificates:
- ISO9001
- Keywords:
- chain, aolly chain, high-intensity chain
