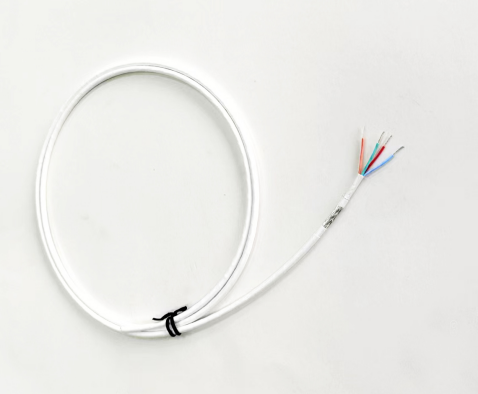

LSRC2003R aerospace MIL-1394b high-speed data bus cable
Electrical & Physical Properties
Impedance
110±6
Attenuation
100MHz@3.0（db/10m）
Attenuation
250MHz@4.70（db/10m）
Attenuation
500MHz@6.70（db/10m）
Attenuation
1000MHz@9.70（db/10m）
Delay Difference
11.5
Delay
4.20
Capacitance
≤45
Dielectric withstand -Conductor to Conductor
1.5
Dielectric withstand - Conductor to Shield
1.0
Minimum Bending Radius
32
Insulation Resistance
≤5000
Operating Temperature Range
-55~165
Weight
23
