Instantel Micromate Vibration Monitor

Instantel Micromate Vibration and Overpressure Monitor

Seamlessly record vibration, sound/noise level, or air overpressure with just one monitoring unit. The Micromate was custom engineered with a rugged and reliable design to withstand harsh conditions, including water-resistance. Experience zero deadtime that includes 10 to 15 days of uninterrupted monitoring with the provided internal battery. The Micromate’s 15 MB of memory can store up to 1,000 events, upgradeable to 4,000 events with the extended 60 MB memory option.

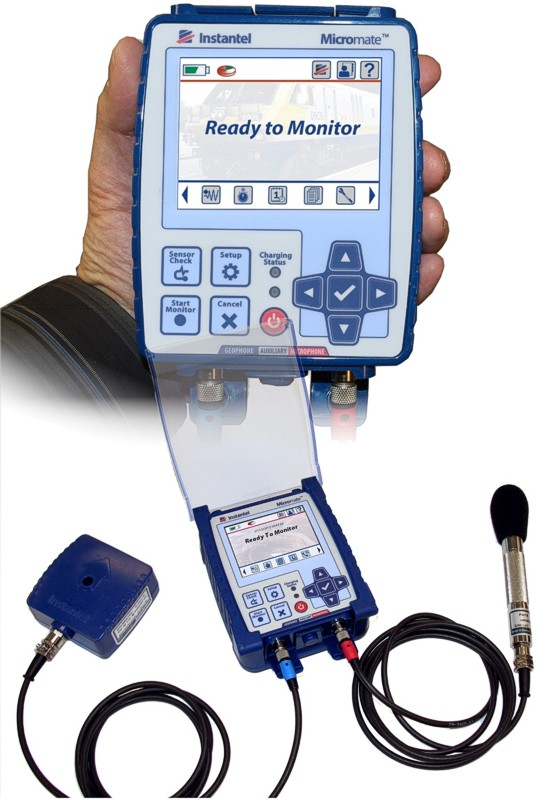

The Micromate is light and portable. It is small enough to fit in the palm of your hand and features a high resolution color touchscreen display with a QWERTY keypad. It features a built-in USB port so you can easily connect a USB flash drive to transfer events or even update the unit’s firmware – quickly, easily and all in the field without the need of a computer.

The Micromate comes with three channels for a triaxial geophone and one channel for an air overpressure or sound level microphone. Each base unit is coupled with a geophone and configured to meet one of the following industry standards: International Society of Explosives Engineers (ISEE-2017), Deutsches Institut für Normung (DIN 45669-1), Swedish Blasting (SS4604866), and Swedish Pile Driving (SS025211).
