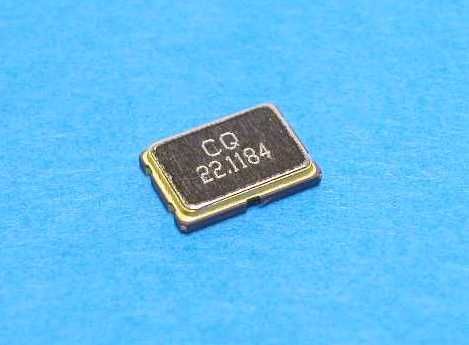

Quartz crystal unit (SMD 3225)

Quartz crystal unit (SMD 3225), SMD 3225 (3.2 x 2.5mm, 4 pads)
Item Code / Model Number:
SMD 3225 (3.2 x 2.5mm, 4 pads)

Quartz crystal unit (SMD 3225) Quartz crystal unit (SMD 3225)
Package 1: SMD 3225 (4 pads, 3.2 x 2.5mm)
Frequency range: 12.000MHz to 50.000MHz
Frequency tolerance (at 25C): +/-10ppm to +/-100ppm
Frequency drift: +/-10ppm to +/-100ppm
Operating temperature range: -10C ~ +60C to -40C ~ +85C
Storage temperature range: -40C ~ +85C to -55C ~ +125C
Aging (at 25C): +/-5ppm/year max.
Shunt capacitance: 7pF max.
Drive level: 100uW (typical)
Insulation resistance: 500Mohms min.(at DC100V)
Load capacitance: Suggested by customer
  • Place of Origin:
  • China
  • Price Terms:
  • FOB Hong Kong
  • Packing:
  • Products are available in thru-hole, SMD, or tape packing
  • Payment Terms:
  • L/C;T/T
  • Delivery Time:
  • 45-60 days
  • Min Order Quantity:
  • 1K pcs
  • Keywords:
  • quartz crystal, quartz crystal unit, electronic component

Company Profile

  • Business Type:
  • Manufacturer
  • Country:
  • Hong Kong (China)
  • Employee Count:
  • 1000
  • Established Year:
  • 1988
  • Brands:
  • CQ
  • OEM:
  • YES
  • ODM:
  • NO
  • Existing Markets:
  • U.S.A, Europe, Japan, etc.
  • R&D Department:
  • YES
  • Factory Location:
  • Jiangsu Province, China
  • Production Leadtime:
  • 45-60 days
  • Monthly Productivity:
  • Depends on items
  • Certificates:
  • ISO 9001, 9002, 14001, TS16949
  • Strengths:
    1. We have a full range of frequency control components for customers to choose from
    2. Starting from KHz and up to GHz, we can also provide standard as well as custom-designed components to meet customers' requirements
