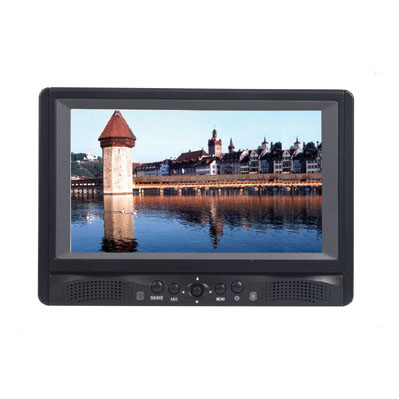

9.2 inches DVB-T TV

9.2" inch TFT LCD color panel
Resolution: 640 x 480 x RGB
Brightness: 250cd/m2
Contrast: 200:1
Support standard definition TV (SDTV 720P)
Dual band receiver frequency: analogue TV and DTV
TV system: ATV (PAL) I , D/K , B/G
(NTSC) M
(SECAM) D/K , B/G
DTV (DVB-T)
Frequency range: 48.25 to 863.25MHz
DTV compliant: ISO/IEC 131818
Transmission standards: DVB-T and MPEG2
Demodulation: COFDM with 2K/8K FFT mode
FEC: all DVB modes
Video system: MP@ML, PAL, 4:3/16:9
Audio system: MPEG layer I and II 32/44.148kHz
Audio sampling rate: 32.44.1 and 48kHz
Modulation: QPSK, 16/QMA and 64/QMA
Bandwidth: 7 or 8MHz
Guard interval: 1/4, 1/8, 1/16, 1/32 and off
FEC: 1/2, 2/3, 3/4, 5/6 and 7/8
OSD languages: English, German, French, Italian, Portuguese, and Spanish
Connection terminals: AV input/output, VGA input (optional) and stereo earphone jack

Power management:
AC adapter 110 to 240V DC12V
car adapter 12V DC
Power consumption: approximately 15W

Lead Time:30 days upon receipt deposit

Standards:CE, Rohs
