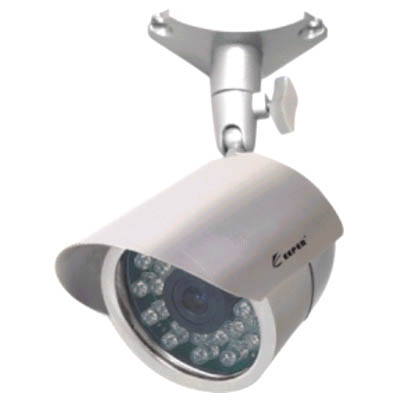

1/3" Sharp Digital Image Video Camera
1/3" Sharp Digital Image Video Camera, KC-R3140Item Code / Model Number:
KC-R3140
1/3 inches Sharp Digital Image Video Camera
1/3"SHARP CCD Image Sensor
Pixels:PAL=500(H)x 582(V);NTSC=512(H)x482(V)
TV system:PAL/NTSC
Sensitive area:4.8 x 3.6(mm)
Syn. system: internal
Resolution:350TV Line
Min illumination:1.0Lux/F:2.0
S/N: more than 48dB(AGC off)
Electronic shutter:PAL=1/50-1/100,000sec;NTSC=1/60-1/100,000sec
Video output:1 Vp-p75Ohm
Power supply:DC 12V 250mA
Lens: Board lens 3.6mm/ 6mm/ 8mm /12mm optional
Dimension:(D)66x(L)85x(H)140(mm)
Weight:Approx573g
Operation temp:-10 to 50 centigrade degree
Storage temp.:-20 to 60 centigrade degree
Pixels:PAL=500(H)x 582(V);NTSC=512(H)x482(V)
TV system:PAL/NTSC
Sensitive area:4.8 x 3.6(mm)
Syn. system: internal
Resolution:350TV Line
Min illumination:1.0Lux/F:2.0
S/N: more than 48dB(AGC off)
Electronic shutter:PAL=1/50-1/100,000sec;NTSC=1/60-1/100,000sec
Video output:1 Vp-p75Ohm
Power supply:DC 12V 250mA
Lens: Board lens 3.6mm/ 6mm/ 8mm /12mm optional
Dimension:(D)66x(L)85x(H)140(mm)
Weight:Approx573g
Operation temp:-10 to 50 centigrade degree
Storage temp.:-20 to 60 centigrade degree
