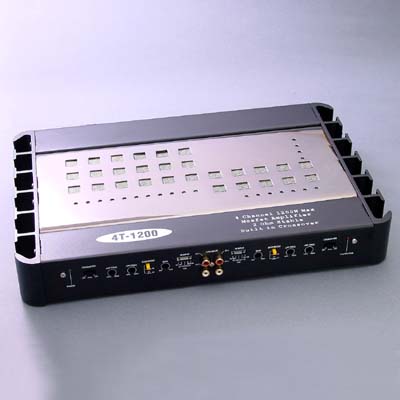

Sell 4 Channels Mosfet Power Amplifier
Sell 4 Channels Mosfet Power AmplifierContinuous Selling Item
Sell 4 Channels Mosfet Power Amplifier
RMS power 40W x 4ch
Thermal, Overload, Short Connection & DC Offset Protection
THD @ 0.02%
Signal/Noise Ratio: > 98dB
Channel Separation: >60dB
TRI-Mode Speaker Connection
High / Low Level Input
Input Impedance: Low level: 10K Ohm, High level: 100 Ohm.
Input Sensitivity: 100mV ~ 5V
Frequency Response +/- 1.0dB : 10Hz-30KHz
2 Ohm Stable
Low Pass Crossover: 40Hz~150Hz
High Pass Crossover: 120Hz~400Hz
Bass Boost (45Hz) : +18dB
Gold Plated Terminal / RCA Jack
Soft Delayed Remote Turn-On
Dimensions: 250 x 55 x 390mm
Thermal, Overload, Short Connection & DC Offset Protection
THD @ 0.02%
Signal/Noise Ratio: > 98dB
Channel Separation: >60dB
TRI-Mode Speaker Connection
High / Low Level Input
Input Impedance: Low level: 10K Ohm, High level: 100 Ohm.
Input Sensitivity: 100mV ~ 5V
Frequency Response +/- 1.0dB : 10Hz-30KHz
2 Ohm Stable
Low Pass Crossover: 40Hz~150Hz
High Pass Crossover: 120Hz~400Hz
Bass Boost (45Hz) : +18dB
Gold Plated Terminal / RCA Jack
Soft Delayed Remote Turn-On
Dimensions: 250 x 55 x 390mm
