Triple D International Ltd.

Motherboard

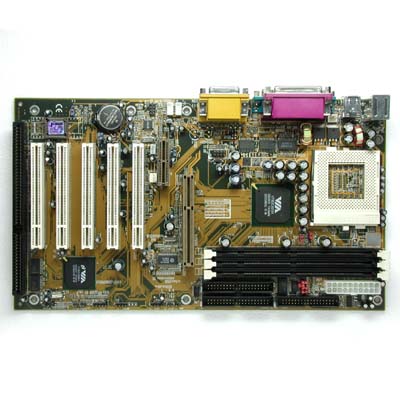

Motherboard, TD961
Item Code / Model Number:
TD961

Motherboard Motherboard
    Processor
  • Intel� Pentium� II/III & CeleronTM (66/100/133Mhz Front Side Bus) (PGA370 TYPE)
  • 300/333/350/366/400/433/450/466/500/533/550/600/650/667/700Mhz or above
  • Chip Set
  • VIA� Apollo PRO133 (693+686A)
  • BIOS
  • 2M Flash EPROM (Support PnP, APM, ACPI, ATAPI, DMI)
  • IDE AUTO LBA Mode Supports HDDs over 8.4GB
  • Trend Micro ChipAway Virus Protection
  • Cache
  • L2 Cache is CPU Built-in
  • Memory
  • Size up to 768MB
  • Tree 168-pins DIMMs
  • On Board I/O
  • Support Two PCI Enhanced IDEs PIO Mode 3, Mode 4 and Ultra DMA 33/66 Channels. (Optional Ultra DMA66 Cable at extra cost). Twin Headers for 4 IDE devices Including IDE HDDs and CD ROMs
  • Support Two FDDs of 360KB, 720KB, 1.2MB, 1.44MB or 2.88MB.
  • One ECP/EPP Parallel Port, Two 16550A UART Serial Ports, Four USD Ports,(TWO USB PORTS REQUIRE ADAPTOR CABLE AT EXTRA COST)
  • PS/2 Mouse Port, PS/2 Keyboard Port
  • On Board Sound
  • Integrated AC97 Controller with Standard AC97 Codec.
  • Pnp,Full-Duplex,Sound Blaster 16 Compatible, Direct Sound Ready.(Optional at extra cost)
  • Line-in,Line-out,Mic-in and MIDI/Game Port
  • Hardware Monitoring(Optional)
  • Voltage,Temperature,Fan Speed Monitoring, CPU Over Heat Protection.
  • Expansion Slot
  • One ISA Bus Slots(One PCI Shared Slot). Five PCI Bus Slots(One ISA Shared Slot).
  • One Accelerated Graphics Port(AGP). One Audio Modem Riser (AMR)
  • Plug and Play
  • Plug and Play Specification 1.1.
  • Plug and Play for DOS�, Windows� 3.x, and Windows� 95.
  • PC97/98
  • PC97/98 Ready,PC99 Color Connector. Power Management
  • Support SMM,APM and ACPI
  • Comply to Energy Star "Green PC" Program
  • Supports Modem Ring-in Wake up
  • PCI
  • PCI 2.1
  • AGP
  • AGP 1.0
  • VRM
  • On Board VRM 8.4
  • Battery
  • On-board Lithium Battery
  • Others
  • CPU Frequency Multiplier Jumperless(optional)
  • Alarm Wake-up
  • Bundle "PC-cillin 6" Anti Virus Software
  • Board Size
  • 174mm x 305mm, ATX Form Factor
  • Keywords:
  • axle, triple d, mpeg, mpeg 2, computer mainboard, mother board, motherboard, system board, pc main
