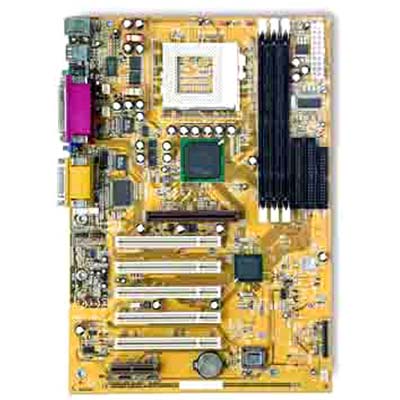

Motherboard
Motherboard, TD960Item Code / Model Number:
TD960
Motherboard
-
Processor
- Intel� Pentium� III (100/133Mhz Front Side Bus )(PGA370 Type)
- 450 or above Chip Set
- Intel� 815
- On Chip 3D accelerated VGA port BIOS
- Intel Firmware Hub (with Security Feature) (4MB)
- Support Pnp, APM,ACPI,ATAPI,DMI
- IDE AUTO LBA Mode Supports HDDs over 8.4GB
- Trend Micro ChipAway Virus Protection Cache
- L2 Cache is CPU Built-in Memory
- Size up to 512MB
- Tree 168-pins DIMMs On Board I/O Support Two PCI Enhanced IDEs PIO Mode 3, Mode 4 and Ultra DMA 33/66 Channels. (Optional Ultra DMA66 Cable at extra cost). Twin Headers for 4 IDE devices Including IDE HDDs and CD ROMs
- Support Two FDDs of 360KB, 720KB, 1.2MB, 1.44MB or 2.88MB
- One ECP/EPP Parallel Port, Two 16550A UART Serial Ports, Two USB Ports
- PS/2 Mouse Port, PS/2 Keyboard Port On Board Sound
- Integrated AC97 Controller with Standard AC97 Codec.
- Pnp,Full-Duplex,Sound Blaster 16 Compatible, Direct Sound Ready (Optional at extra cost)
- Line-in,Line-out,Mic-in and MIDI/Game Port Hardware Monitoring(Optional)
- Voltage,Temperature,Fan Speed Monitoring, CPU Over Heat Protection Expansion Slot
- Five PCI Bus Slots
- One Accelerated Graphics Port(AGP). One Audio Modem Riser (AMR) Plug and Play
- Plug and Play Specification 1.1
- Plug and Play for DOS�, Windows� 3.x, and Windows� 95. PC97/98
- PC97/98 Ready,PC99 Color Connector Power Management
- Support SMM,APM and ACPI
- Comply to Energy Star "Green PC" Program
- Supports Modem Ring-in Wake up PCI
- PCI 2.1 AGP
- AGP 2.0/1.0 VRM
- On Board VRM 8.4 Battery
- On-board Lithium Battery Others
- CPU Frequency Multiplier Jumperless(optional) Alarm Wake-up
- Bundle "PC-cillin 6" Anti Virus Software Board Size
- 213mm x 305mm, ATX Form Factor
