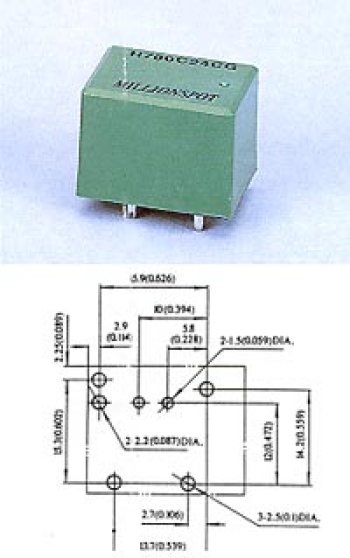

H700 SERIES

H700 SERIES, LOW COST; SIZE: UNCOVERED - 22x19x17mm COVERED - 25x220x18mm; SWITCH CAPACITY UP TO 30A
Item Code / Model Number:
LOW COST; SIZE: UNCOVERED - 22x19x17mm COVERED - 25x220x18mm; SWITCH CAPACITY UP TO 30A

H700 SERIES H700 SERIES
Type of Relay: H700
Size L x W x H (mm):
- Open Types: 23 x 19 x 17
- Sealed Types: 25 x 20 x 18
Contact:
- Arrangement: SPDT SPST
- Rating COS = 1
30A 12VDC
20A 24VDC
- Max. Switching Current (A): 30A
Coil:
- Nominal Voltage DC: 6 to 48V
- Nominal Power: 0.6 - 1.7W
Breakdown Voltage
- Between Open Contact: 750VAC
- Between Coil & Contact: 1500VAC
Insulation Resistance: DC 500V 100MΩ
Life:
- Mechanical (operation): 1 x 10,000,000
- Electrical (operation): 1 x 100,000
Terminal Type: P.C. Board
  • Place of Origin:
  • China
  • Keywords:
  • parts for general electrical appliance, parts for general machine making, parts for toy industry
