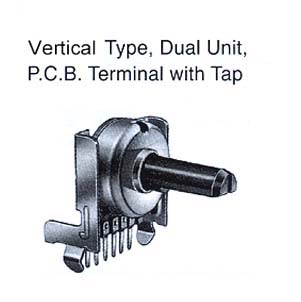

F-166K Series

Electrical Characteristics
  Total Resistance
2 K ohm ~ 500 K ohm
  Total Resistance Tolerance ...±20%
  Resistance Taper ... A, B, C, D
  Max. Operation Voltage
AC 50 V, DC 20 V
  Rated Power
0.06 W
  Sliding Noise ... Less than 100 mV
  Insulation Resistance ... More than 100 M ohm at DC 250 V
  Withstand Voltage ... 1 minute at AC 250 V
  Residual Resistance ... Term.1~2: Less than 20 ohm
.................................... Term.2~3: Less than 20 ohm
  Gang Error (Dual Unit) ... -40 dB ~ 0 dB ±3 dB

Mechanical Characteristics
  Total Rotational Angle ... 300º±5º
  Rotational Torque ... 20 gf.cm ~ 200 gf.cm
  Rotational Stopper Strength ... 6.0 Kgf.cm Min.
  Push-Pull Strength ... 8.0 Kg.f Min.

Durability
  Rotational Life ... 10,000 Cycles
