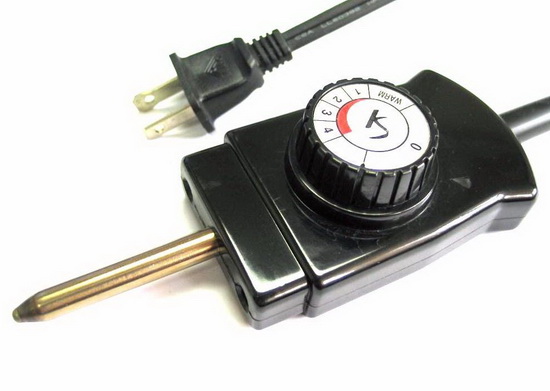

Thermostat Appliance Plug
Thermostat Appliance Plug, KS-132Item Code / Model Number:
KS-132
Thermostat Appliance Plug
Application
For household appliances such as: electric tray, electric stove, BBQ grill and other heating kitchen wear…etc…
Specifications
Function : Single pole, the contact opens when the temperature is reached.
Standard of cable : HPN, 16AWG
Standard Rating : [ UL & CUL ] 125V AC 13A
Number of Automatic Cycles for each Automatic Action: [ UL & CUL ] 100,000 cycles
Maximum Temperature : [ UL & CUL ] 250℃
Temperature Setting Range : [ UL & CUL ] 0 - 250℃
Tolerance of Operation Range : ± 10℃
Turning Range : 300 limited turning ranges possible
Approval
UL / CUL
For household appliances such as: electric tray, electric stove, BBQ grill and other heating kitchen wear…etc…
Specifications
Function : Single pole, the contact opens when the temperature is reached.
Standard of cable : HPN, 16AWG
Standard Rating : [ UL & CUL ] 125V AC 13A
Number of Automatic Cycles for each Automatic Action: [ UL & CUL ] 100,000 cycles
Maximum Temperature : [ UL & CUL ] 250℃
Temperature Setting Range : [ UL & CUL ] 0 - 250℃
Tolerance of Operation Range : ± 10℃
Turning Range : 300 limited turning ranges possible
Approval
UL / CUL
