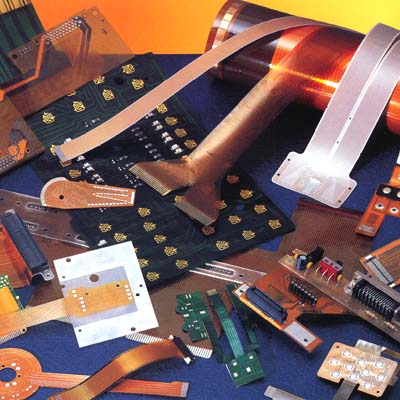

Flexible PCB (Single Sided. Double Sided)
Flexible PCB (Single Sided. Double Sided)Item Code / Model Number:
Flexible PCB (Single Sided. Double Sided)
Single side polyester / polyimide FPC
Double side polyester / polyimide FPC
General Engineering Specification of Flexible PCB
Double side polyester / polyimide FPC
General Engineering Specification of Flexible PCB
- Copper Laminated Base Material: Polyimide (Kapton) or Polyester
- Coverlay: Polymide (Kapton), Polyester or Solder Mask
- Thickness: 1/2 MIL, 1 MIL, 2 MIL, 3 MIL, 5 MIL
- Minimum Trace Width: 0.010 Inch Normal (0.005 Inch Minimum)
- Minimum Space Width: 0.010 Inch Normal (0.005 Inch Minimum)
- Conductor: 1/2 OZ, 1 OZ, 2 OZ ED (RA) Copper
- Plating: Tin-Lead (or H.A.L.), Nickel, Gold
- Stiffener: Upon Request
- QC Spec.: IPC-FC-250A (Single Side and Double Side)
