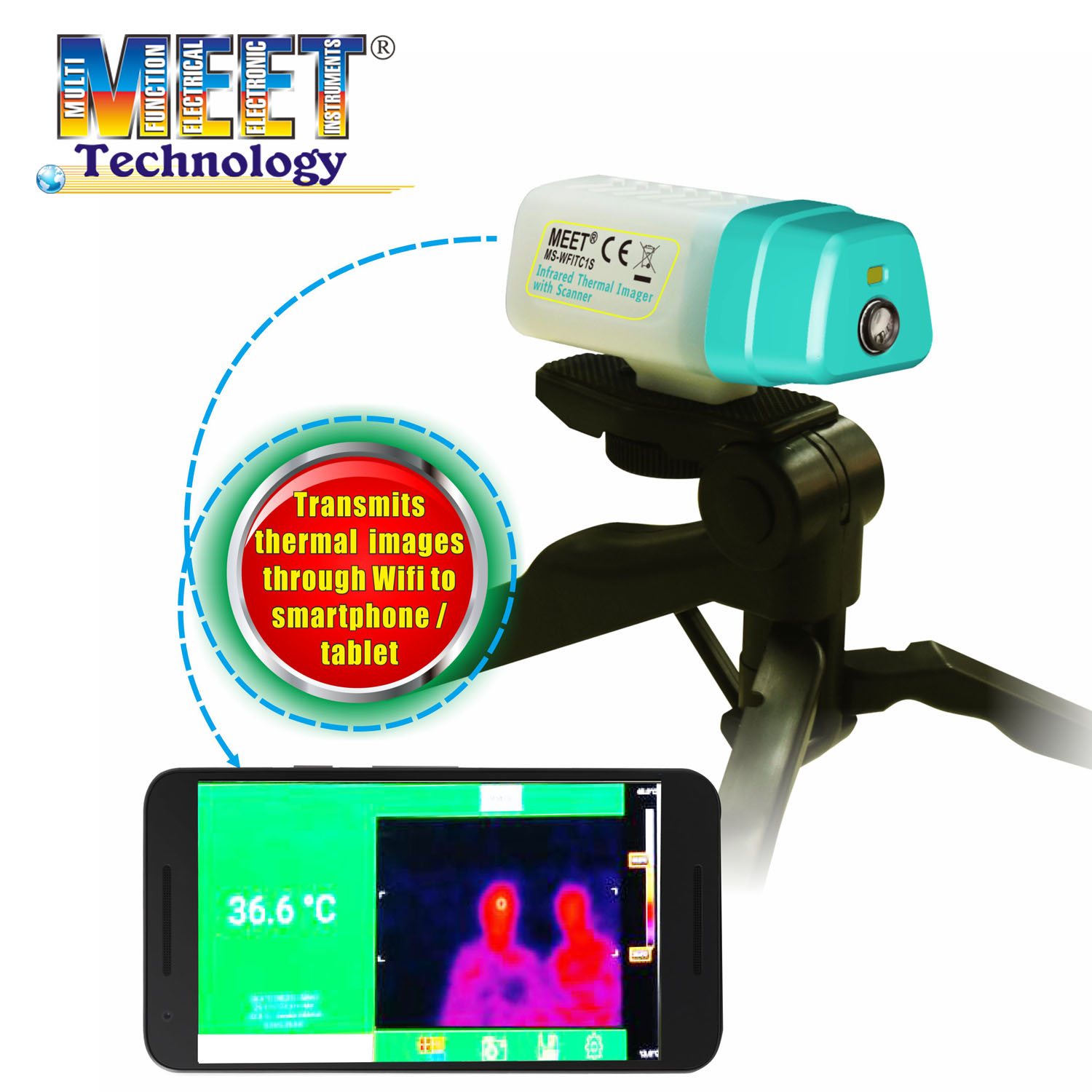

Wifi Connectivity Thermal Imager

Wifi Connectivity Thermal Imager, MS-WFITC1S
Item Code / Model Number:
MS-WFITC1S

Wifi Connectivity Thermal Imager Wifi Connectivity Thermal Imager
Specifications:
1) Display: Through Smart Phone/ Tablet display (Android/iOS)
2) Thermal image detector: Low power CMOS, shutterless
3) Thermal image resolution: 80(H)x62(V), 4960 pixels
4) Menu setting and display: Through Smart Phone/ Tablet
5) Spectral response: 8-14 µm (Thermal LWIR)
6) Measure temperature range/ Resolution(min.): -20℃~1000℃ (-4℉~1832℉)/ 0.1℃(℉)
7) Distance to object measurement display (10cm~320cm)
8) Highest sorting temperature display at scan mode:
a)≥35.5℃(95.9℉)~37.7℃(99.9℉), green screen display
b) ≥37.8℃(100.0℉)~43.0℃(104.9℉), red screen display
c) ≥37.2℃(99.0℉), red spot display when selected at Grey palette
9) Accurancy/ @23.0℃±2℃/ range (distance):
a) Camera mode: <150℃(302℉)/ ±1℃(1.8℉); 150℃~600℃(302℉~1112℉)/ ±4℉(7.2℉);>600℃(1112℉)/ ±10℉(18℉)/ 50~100cm
b) Scan mode: ≥36.0℃(96.8℉)~38.9℃(102.0℉);±0.3℉(optimal)(±0.6℉)/ 10-90cm (approx.)
10) Ambient temp. and Humidity display
11) Adjustable emissivity 0.1~0.99
12) Fixed focus distance: 0.5m
13) Color palette: White Hot/ Fulgurite/ Rainbow/ Red/ Blue spot at Grey background
15) Real time isothem graphic display
16) Image frequency: ≤9Hz
17) Image storage/ File format: Smart Phone/ Tablet display
18) 1/4″ screw for tripod
19) Operating conditions/ Storage conditions: 20℃ to 30℃(68℉~86℉); 10% to 80%RH/ -10%℃ to 50℃(-14℉~122℉); 10% to 80%RH
20) Type "C" USB input for charging or continuous operation
21) Dimensions (LxWxD) (approx.): 90x40x38
22) Battery type and operation duration: Rechargeable 3.7V/ 680~700mAH polymer battery included, (continuous operating more than 1 hour)
23) Weight (approx.) grams (with battery): 60
  • Place of Origin:
  • CHINA
  • Brand:
  • MEET
  • Payment Terms:
  • T/T;Cash;D/P
  • Delivery Time:
  • 30-45 days
  • Min Order Quantity:
  • 1
  • Keywords:
  • thermometer
