Pocket Size Thermal Camera

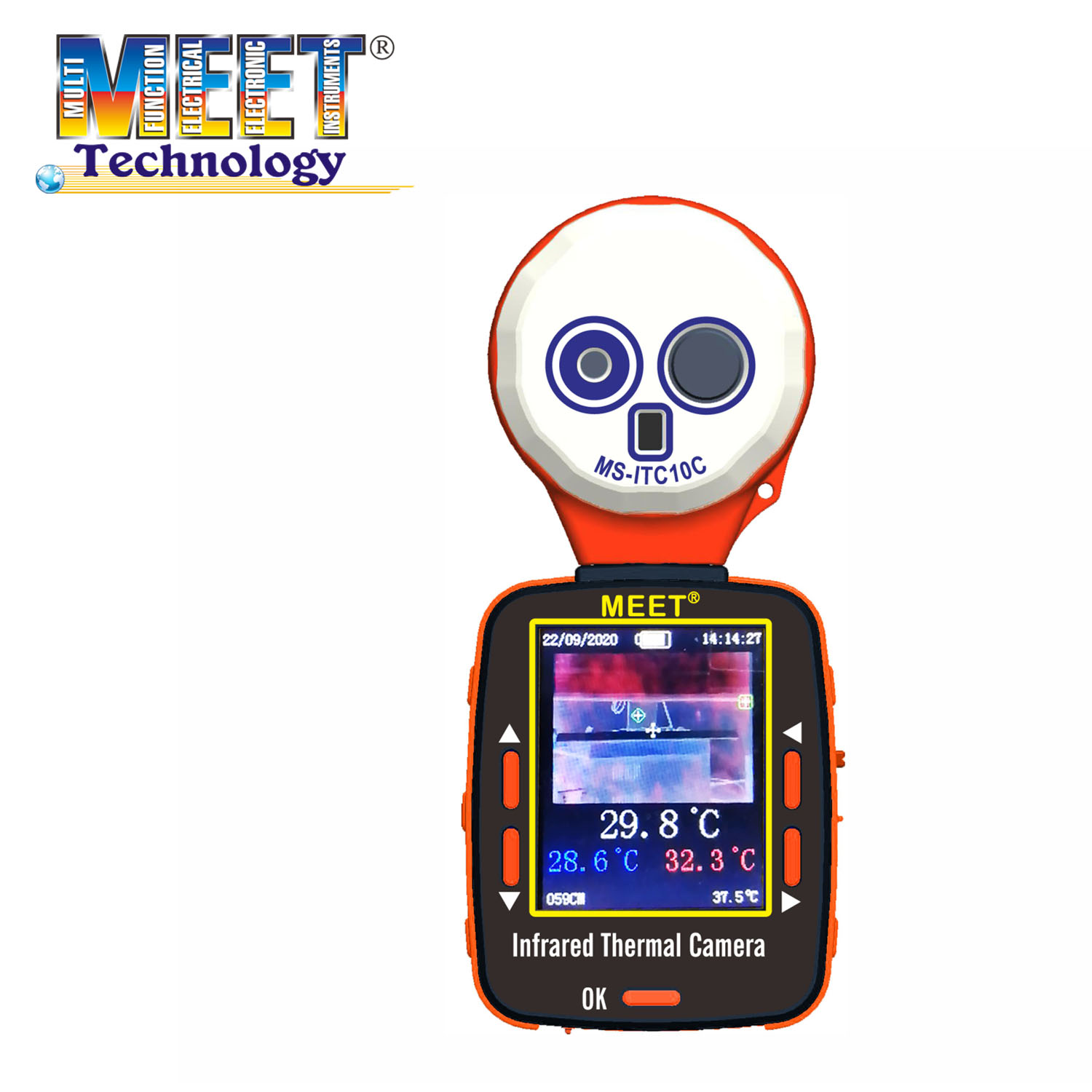

Pocket Size Thermal Camera, MS-ITC10C
Item Code / Model Number:
MS-ITC10C

Pocket Size Thermal Camera Pocket Size Thermal Camera
Specifications:
1) Display: 2-inch TFT Colour display (220x176)
2) Visual Camera: 640x480
3) Thermal image detector: Low power CMOS, shutterless
4) Thermal image resolution: 80(H)x62(V), 4960 pixels
5) Menu setting and display: Yes
6) Spectral response: 8-14 µm (Thermal LWIR)
7) Measure temperature range/ Resolution(min.): -20℃~1000℃ (-4℉~1832℉)/ 0.1℃(℉)
8) Distance to object measurement display (10cm~320cm)
9) Highest sorting temperature display at scan mode:
a)≥35.5℃(95.9℉)~37.7℃(99.9℉), green screen display
b) ≥37.8℃(100.0℉)~43.0℃(104.9℉), red screen display
10) Accurancy/ @23.0℃±2℃/ range (distance):
a) Camera mode: <150℃(302℉)/ ±1℃(1.8℉); 150℃~600℃(302℉~1112℉)/ ±4℉(7.2℉);>600℃(1112℉)/ ±10℉(18℉)/ 50~100cm
b) Scan mode: ≥36.0℃(96.8℉)~38.9℃(102.0℉);±0.3℉(optimal)(±0.6℉)/ 10-90cm (approx.)
11) Max.or Min. alarm beep sound select
12) Adjustable emissivity 0.1~0.99
13) Fixed focus distance: 0.5m
14) Color palette: White Hot/ Fulgurite/ Rainbow/ Red/ Blue spot at Grey background
15) Image frequency: ≤9Hz
16) Image storage/ File format: IF card (not include, up to 32G) BMP
17) 1/4″ screw for tripod
18) Operating conditions/ Storage conditions: 20℃ to 30℃(68℉~86℉); 10% to 80%RH/ -10%℃ to 50℃(-14℉~122℉); 10% to 80%RH
19) Type "C" USB input for charging or continuous operation
20) Dimensions (LxWxD) (approx.): 55x55x120
21) Battery type and operation duration: Rechargeable 3.7V/ 680~700mAH polymer battery included, (continuous operating more than 1 hour)
22) Weight (approx.) grams (without battery): 115
