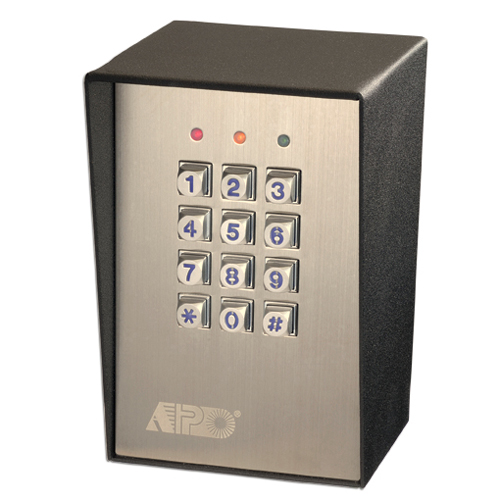

VANDAL RESISTANT BACK-LIT KEYPAD

DK-2880 is a full feature keypad system. It consists of 2 relay outputs controlled by 2 groups of independent User Codes. Output 1 is a 5 Amp rating relay providing both N.C. and N.O. dry contacts for door strike, Output 2 is a 1 Amp rating relay also providing N.C. and N.O. dry contacts for other control applications, such as controlling of an alarm system. Three on board LED lamps are wired internally to indicate the operation status of the outputs 1 and 2 and the system status of the keypad. The keypad utilizes terminal block for all the external connections.

MAIN FEATURES - DK-2880
* Back-lit Metal Button Keypad
* 1.5mm Stainless Steel Face Plate
* Vandal Resistant & Weatherproof
* Heavy duty Metal Housing
* Direct 12-24V AC/DC Operation
* Dual Relay Output
* 100 User PIN for Output 1
* 10 User PIN for Output 2
* Surface Mount or Gooseneck Mounting
* Flush Mount Version Available
* Dimensions: 156(H) X 103(W) X 50/70(D: bottom side/upper side) mm
