Vandal Resistant, Weatherproof, Back-lit, Flush Mount Access Control Keypads

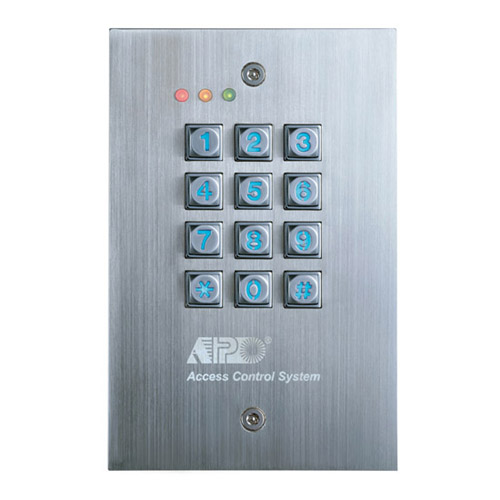

DK-2880A is a full feature keypad system designed for Flush Mounting on any brick or wooden wall with its gang box. It consists of 2 relay outputs controlled by 2 groups of independent User Codes. Output 1 is a 5 Amp rating relay providing both N.C. and N.O. dry contacts for door strike, Output 2 is a 1 Amp rating relay also providing N.C. and N.O. dry contacts for other control applications, such as controlling of an alarm system. Three on board LED lamps are wired internally to indicate the operation status of the outputs 1 and 2 and the system status of the keypad. The keypad utilizes terminal block for all the external connections.

MAIN FEATURES DK-2880A
* Flush Mount on Any Brick or Wooden Wall
* Back-lit Metal Button Keypad
* 1.5mm Stainless Steel Face Plate
* Vandal Resistant & Weatherproof
* Gasket Sealed Gang Box
* Environment Protection --- IP-66 for all Weather
* Direct 12-24V AC/DC Operation with No Voltage Selection
* Dual Relay Output
* 100 User PIN for Output 1
* 10 User PIN for Output 2
* Built-in Tamper Switch
* Surface/ Gooseneck Mounting Version Available
* Dimensions: Whole Unit -- 151(H) X 97.5(W) X 42(D) mm
* Dimensions: Flush Mounting Gang Box --121(H) X 78.5(W) X (D) mm
