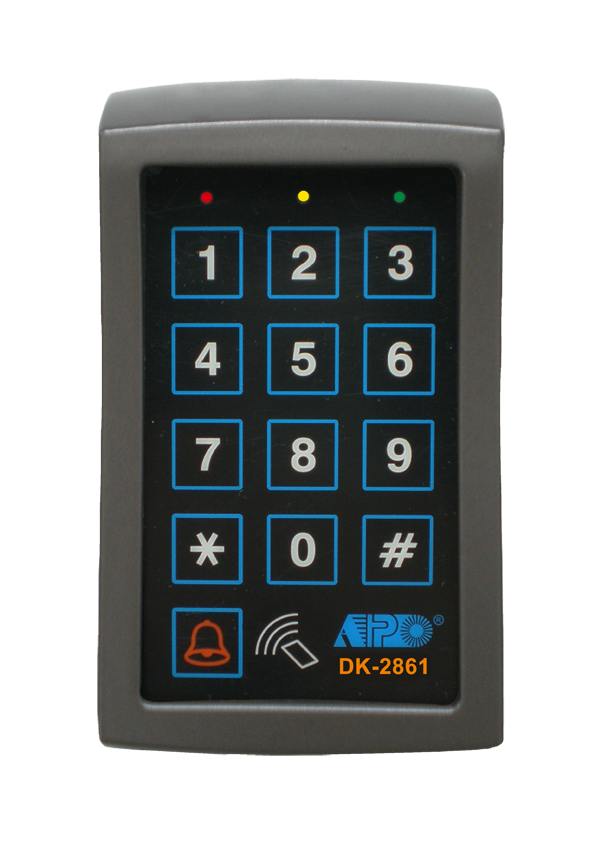

The Popular Version Card Reader Keypad – Dk-2861(p)

A Popular Version, DK-2861(P) is available at lower cost, which keeps the key features for operating of electric door lock strike in access control.

The Features:
＊1,000 User PINs and/or Proximity EM Cards
＊50 Visitor Codes with Programmable Valid Time
＊User Controlled Lockup on After-Office-Hours or Nobody at Home
＊Intelligent Egress Button with Programmable Conditions for door lock strike for "Going Out"
＊ON-OFF Programmable for The Pacifier Tones & The Status Flashing LED
＊Compatible with Fail-safe & Fail-secure Electric Locks
＊Multi Combinations of PIN-Card for Each User
＊Programmable Number of False Trials for System Lockup
＊Auto or Manual Code Entry
＊Dual Level Back-lit Keyboard (Except The DK-2810)
＊12VDC Nominal, 11-15VDC Operation
＊-20 Deg C to +70 Deg C
＊5-95% Relative Humidity, Non-condensing
＊ABS Plastic Housing
＊Operating Current: 50mA (Quiescent); 120mA Max.
