Access Control Card Reader Keypad

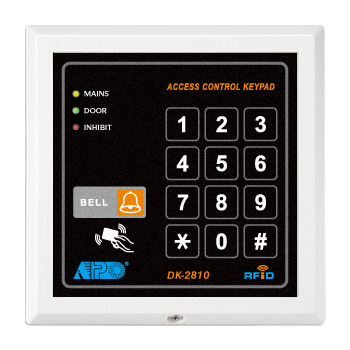

The DK-2810 is an economy self-contained single relay output keypad. It combines the functions of digital keypad and proximity EM card reader in one unit designed for stand alone operation.
It is an ideal keypad mainly for Door Strike in access control or Arm-Disarm Control of an alarm system. It can also be a programmable industrial timer (with the timing of 1 second to over 24 hours) for Automatic Operator Systems.

Stand Alone Electric Lock in Access Control
Compatible with Fail-secure or Fail-safe Electric Lock
1,000 User PINs and/or Cards
50 Visitor Codes Programmable for One Time; or Valid for 1 to 99 Hours
Over 100 Million Combinations for User PINs
Super User Code Operates Output Relay, Also Makes System Inhibit or Resets Inhibit
Programmable Intelligent Egress Button Controls “Going Out” with Delay, Warning and Button Contacting Manners of Momentary or Holding Contact
Common User PIN, Group User PINs & Private User PINs for Working with The EM Card for Various Levels of Security Enhancement
ON-OFF Selectable for Pacifier Tone, Standby Flashing LED
Output Relay 1 – N.C. & N.O. Dry Contacts, 5A / 24VDC Maximum
Extremely Long Programmable Timer for Output Relay; 1 Second to Over 24 Hours
Tamper Switch – N.C. Dry Contact; 50mA/12VDC
Door Bell Button – N.O. Dry Contact; 50mA/12VDC
Operating Voltage Range : 12VDC Nominal; 11-15VDC
Operating Current : 40 (Quiescent) to 90mA (Relay Active)
Operating Temperature : -20 Deg C to +70 Deg C
Environment Humidity : 5-95% Relative Humidity, Non-condensing
Operation Environment & Ingress Protection : Indoor Only, IP-50
ABS Plastic Low Profile Housing
Weight : 180gs
Dimensions : 117(H) X 117(W) X 21(D) mm
