SINGLE RELAY OUTPUT DIGITAL ACCESS CONTROL KEYPAD

DK-9520 is the simplified version of the DK-9521, mainly designed for stand-alone electric door lock installation. Its 5 Amp output relay provides N.C. and N.O. dry contacts for door strike and virtually compatible with any electric locking devices. Except the inter-lock and door monitoring facilities, the keypad has most of the basic features just like the other keypads in this series. A slim-line surface mount box in Beige color is supplied with each keypad. The box in Black color is also available on request when place order.

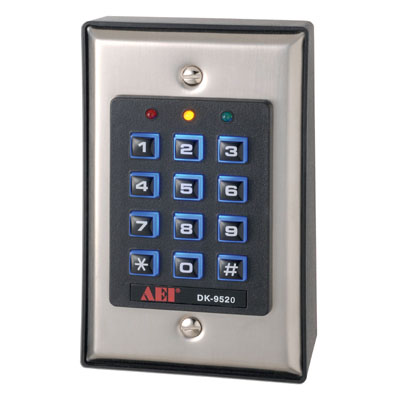

The DK-9520 is available in Back-lit keyboard or in Standard keyboard. The picture shown is a Back-lit version.

FEATURES

* Direct 12-24V AC/DC Operation
* Over 100 Million Code Combinations
* 100 User Codes with 4-8 Digits
* Operates Fail-safe or Fail-secure Locking Device
* Door Lock Inhibit Authorization
* One 5 Amp Relay Output with N.C. & N.O. Contacts
* Auto or Manual Code Entry
* Output Activation Announcer
* Pacifier Tone Inhibit Control
* Egress Input for Door Remote Triggering
* All Features are Keyboard Programmable
* Non-volatile Memory in Power Failure
* Flush or Surface Mount
* Surface Mount Box in Beige (Standard Version) or Black (Back-lit Version)
* Size : 116(H) X 72(W) X 43(D) mm
