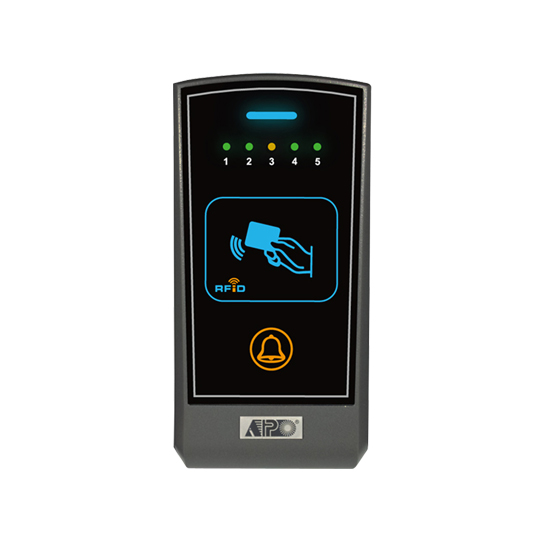

Sell SELF-CONTAINED ACCESS CONTROL READER Compatible with AR-2802 for Multi-Station Operation

SPECIFICATIONS

＊Operating Voltage : 12VDC; 11-16VDC
＊Operating Current : 60mA (quiescent); 80mA (maximum)
＊Working Environment & Ingress Protection : Indoor or Outdoor, IP-55
＊Operating Temperature : -20 Deg C to +70 Deg C
＊Working Humidity : 5-95% Relative Humidity, Non-condensing
＊Number of User Cards : 500, Standard 125Khz Proximity EM Cards
＊Number of Super User Cards : 5 Self-Created Cards Using Standard 125Khz Proximity EM Cards
＊Super User Card for Door Open, System Inhibit or Resets Inhibit
＊Programmable Safety Lock-up for Unauthoriized Trial
＊Door Lock Timer : 1-60 Seconds Programmable
＊Data I/O Bus for Optional Reader, 3 Max.
＊Bell Button with Relay Contact (1A / 24VDC) for Optional Door Chime
＊Solid State Output for Door Lock Strike, 3A / 16VDC
＊Tamper Switch – N.C. Dry Contact; 50mA/12VDC
＊Weatherproof ABS Plastic Housing
＊Weight : 160gs
＊Dimensions : 119(H) X 60(W) X 23(D) mm
