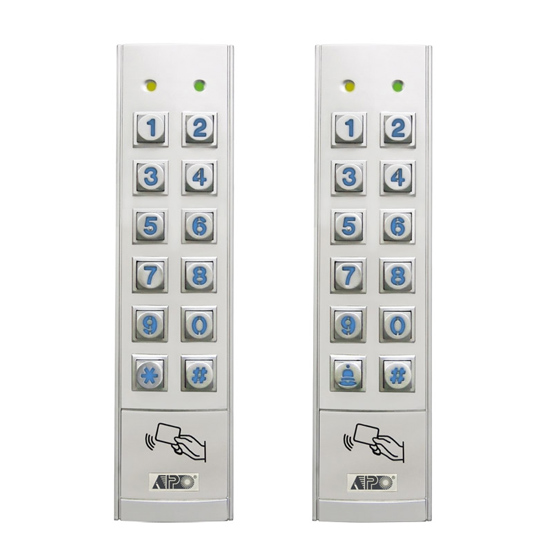

Sell DUAL RELAY DIGITAL ACCESS CONTROL CARD READER KEYPAD

MAIN FEATURES

＊Stand Alone Electric Lock in Access Control
＊Compatible with Fail-secure or Fail-safe Electric Lock
＊1,000 User PINs and/or EM Cards
＊50 Visitor Codes Programmable for One Time; or Valid for 1 to 99 Hours
＊Over 100 Million Combinations for User PINs
＊Super User Code Operates Output Relay, Also Makes System Inhibit or Resets Inhibit
＊Programmable Intelligent Egress Button Controls “Going Out” with Delay, Warning and Button Contacting Manners of Momentary or Holding Contact
＊Common User PIN, Group User PINs & Private User PINs for Working with The EM Card at Various Levels of Security Enhancement
＊ON-OFF Selectable for Pacifier Tone, Standby Flashing LED
＊Output Relay 1 – N.C. & N.O. Dry Contacts, 2A / 24VDC Maximum
＊Output Relay 2 – N.O. & N.O. Dry Contacts, 1A / 24VDC Maximum for Door Bell or Auxiliary Control
＊Extremely Long Programmable Timer for Output Relay; 1 Second to Over 24 Hours
＊Tamper Switch – N.C. Dry Contact; 50mA/12VDC
＊Operating Voltage Range : 12VDC Nominal; 11-15VDC
＊Operating Current : 60 (Quiescent) to 95mA (Relay Active)
＊Operating Temperature : -20 Deg C to +70 Deg C
＊Environment Humidity : 5-95% Relative Humidity, Non-condensing
＊Operation Environment & Ingress Protection : Indoor or Outdoor, IP-66
＊Zinc Alloy Die Casting Housing
＊Weight : 476gs Net
＊Dimensions : 179.7(H) X 46(W) X 21/25(D) mm
