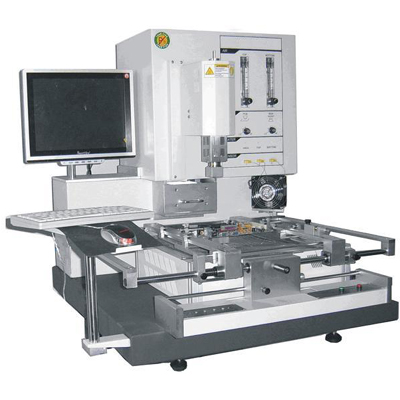

BGA Master

BGA Master, BGA REWROK STATION
Item Code / Model Number:
BGA REWROK STATION

BGA Master BGA Master
Solder Type: Normal Solder/Lead free
SMD: µBGA, BGA, CSP, QFP
PCB Thickness: 0.5~4mm
PCB Size: MAX 500mmW*560mmL
Heating/Consumption(Upper): Hot flow /1200W
Heating/Consumption(Bottom): IR/3000W + Hot flow/1200W
Steps: 6 steps
PCB Adjusting for Table(X or Y): X:100mm±25mm Y:60mm±5mm
Adjusting for Vacuum(¢): ±15°
PCB Positionging PCB: Shape or Tongs
Setup Accuracy: ±0.02MM
Driver: Ball bearing thread
Moving: Step Motor
Control: PC Base Windows XP
Max Consumption: 5.5KW
Power: 1¢, 220V OR 3¢, 380V
Air Protect: Alarm at no air press
Air: 3~8kgf
Sight Vision System: CCD Camera
Focus: Auto
Magnification: 0~20X
Dimension: LED
Dimension: 880mmL X 890mmW X 880mmH
Weight: 125Kg
