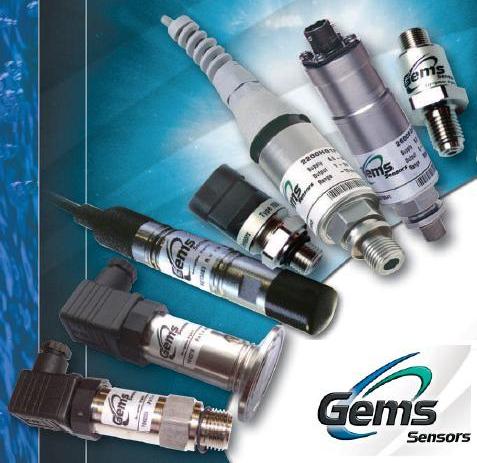

Gems Pressure Sensor/Transmitter

Gems Pressure Sensor/Transmitter
Automate Control Engineering Ltd.

Pressure Range 0 to 4 to 0 to 200mwg (mA & V)
0 to 10, 20, 50,100, 200mwg (mV)
Proof Pressure 1.5 x Fs nominal range
Burst Pressure 3 x Fs
Fatigue Life Designed for more than 100 million FS cycles
Performance
Long Term Drift 0.2% FS/year (non-cumulative)
Accuracy 0.25% FS typical
Thermal Error 0.5% Typical 0-50°C
Compensated Temperatures -10° to +50°C
Operating Temperatures -40° to +80°C
Zero Tolerance 1% of span
Mechanical Configuration
Pressure Port G1/4 AT external fitted with nosecone
Wetted Parts 316 Stainless Steel, Polyurethane, Acetal
Electrical Connection Polyurethane Cable
Enclosure IP68 to 200mwg
Vibration 35g peak sinusoidal, 5 to 2000 Hz
Shock Withstands free fall to IEC 68-2-32 procedure 1
Approvals CE
Weight Approx. 100 grams (additional; cable 75 g/m)
Voltage Output units
Output 0 to 10V
Supply Voltage (Vs) 13 to 28 Vdc
Supply Voltage Sensitivity 0.026% span/V
Min. Load Resistance (FS output / 2) Kohms
Current Consumption Approx 6 mA @ 8Vdc
Current Output units
Output 4-20 mA (2 wire)
Supply Voltage (Vs) 24 Vdc, (8-28 Vdc)
Supply Voltage Sensitivity 0.026% span/V
Max. Loop Resistance (Vs-7) x 50 ohms
Millivolt units
Output 100mV ±1mV
Supply Voltage 10Vdc regulated (15Vdc max)
Bridge Resistance 3K5 ± 20% @ 25°C
Sink Weight P/N 562266
