Mic240super K-span Curving Roof Panel Roll Forming Machine

Mic240super K-span Curving Roof Panel Roll Forming Machine, Mic240
Item Code / Model Number:
Mic240

Mic240super K-span Curving Roof Panel Roll Forming Machine Mic240super K-span Curving Roof Panel Roll Forming Machine
Roll forming machine
Span roll forming machine ZX-240(610) max span:38m
Span roll forming machine ZX-120(305) max span:24m
Roll forming machine

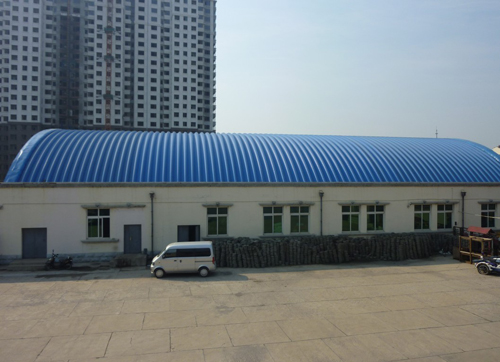

The products from roll forming machine looks very beautiful and have a high strength, its widely used as the roof of the factory, garden, hotel, exhibition center, etc!
Main Technical Specification zx-240(610)
1. Size: 9300mmx2270mmx2400mm
2. Total Weight: About 12000kg
3. Controlling System: PLC
4. Forming Power: 7.5kw
5. Bending Power: 4.0kw+1.5kw+1.5kw
6. Cutting Power: 3.0kw
7. Material of rollers: 45#steel, quenched HRC 58-62
8. Material of roller shafts: 45#steel
9. Material of cutting blade: Cr12 steel
10. PLC Type: Siemens
11. Step of rollers: 13 steps
12. Feeding Width: 914mm
13. Effective Width: 610mm
14. Thickness of the coil: 0.6-1.6mm
15. The depth of the groove: 203mm
16. Working speed: Straight sheet: 15m/min
17. Arch sheet: 13m/min
18. Sewing: 10m/min
19. Max span: 38m
  • Packing:
  • container
  • Payment Terms:
  • L/C;T/T
  • Delivery Time:
  • 10 days
  • Min Order Quantity:
  • 1set
  • Standard / Certificates:
  • CE Certification and ISO9001-2008 Quality Management system Certification.
  • Keywords:
  • k span roll forming machine, roll forming machine, curving roof panel machine
