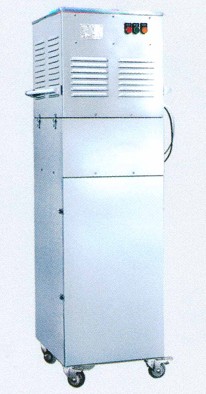

Pharmaceutical Machine-dust Collector

Pulse-jet dust collector is a polyester carttidge type with automatic pulse-jet system,which is designed to be used with middle and high speed rotary tablet press.

Features
Design of GMP
Strong suction capbility ,automatic pulse-jet cleaning system
Large filtering area,lower resistance, hign efficency
High strength,acid alksil resistan and washable filter cartridge
High quality all stainless steel construction
Easily to operate, maintain and clean

Main tech data
Model Mcx700 Mcx 1500
Wind capacity (m3/h) 700 1500
Working pressure(pa) 880 686
Filter area(m2) 8 11
Rated power (kw) 0.75 2.2
Power supply 3AC,380V/50HZ 3AC,380V/50HZ
Overall dimensionL*W*H(mm) 540*600*1660 678*720*1765
Weight(kg) 100 135
