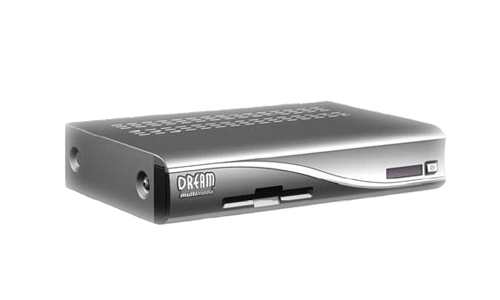

Dreambox 600c Pvr Cable Receiver, Dm600c

Dreambox 600C PVR Cable Receiver, DM600C DescriptionFeatures: 250 MHz PowerPC Processor (350 Mips) Linux Operating System 1 x Smartcard-Reader MPEG2 Hardware decoding Come with Cable Tuner and is NOT changible (DVB-C) V.24/RS232 Interface 10/100Mbit compatible Ethernet Interface 2 LED status 32 MByte Flash, 96 MByte Ram total Integrated IDE UDMA66 Interface Support for internal HDD 2.5" in any capacity Unlimited channel lists for TV/Radio Channel-change time 1 second Full automatic service scan Supports directly bouquet-lists Supports EPG (electronic program guide) Supports own videotext Supports multiple LNB-Switching control (DiSEqC) Fully adaptable OSD in many languages and skin-support S/PDIF Interface for digital bit stream out (AC-3) Frequency Range 950 .... 2150 MHz Signal Level - 65 dBm .... - 25 dBm Signal-to-Noise Level 12 dB max. DBS-Tuner Input Connector F-Type female Input Impedance 75 Ohm AFC +/- 3 MHz Demodulation Shaped QPSK Roll-off Factor 35 % Demultiplexing according ISO 13818-1 Video decoder: Video Compression MPEG-2 and MPEG-1 compatible Video Standard PAL G/ 25 Hz Video Formats 4:3 / 16:9 Footage 16:9, automatic assimilation for 16:9 TV-Device (over Scart) Letterbox precolating for 4:3 TV-Device Audio decoder: Audio compression MPEG-1 & MPEG-2 Layer I and II Audio Mode Dual (main/sub), Stereo Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz Output analogue: Output Level L/R 0,5 Vss on 600 Ohm THD > 60 dB (1 kHz) Crosstalk -65 dB Output digital: Output Level 0,5 Vss on 75 Ohm Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz S/PDIF-Output optical (AC3) Video parameter: Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm Teletext filter in conformity with ETS 300 472 Standard TV-Scart: LNB Voltage horizontal 20V without load, > 17,3V at 400mA LNB shut-off at Standby-Mode Count of active satellite positions: Ambient Temperature +15
