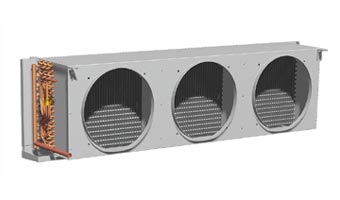

Air Cooled Condenser Evaporator

Flygrow product range covers 19 different type of coil pattern. You can find all the details of fin geometries in the below table

GEOMETRY FIN SPACING
21,00 mm x 12,70 mm 7,00 mm 1,2....4,2 mm
19,05 mm x 16,50 mm 7,00 mm 1,2....4,2 mm
25,00 mm x 21,65 mm 7,00 mm 1,6....6,0 mm
25,00 mm x 12,50 mm 3/8" (9,52 mm) 1,4....4,2 mm
25,40 mm x 15,875 mm 3/8" (9,52 mm) 1,5....4,5 mm
25,00 mm x 19,00 mm 3/8" (9,52 mm) 1,2....4,2 mm
25,00 mm x 21,65 mm 3/8" (9,52 mm) 1,5....6,0 mm
25,40 mm x 22,00 mm 3/8" (9,52 mm) 1,5....4,5 mm
25,00 mm x 25,00 mm 3/8" (9,52 mm) 1,6....4,2 mm
25,40 mm x 25,40 mm 3/8" (9,52 mm) 1,6....4,0 mm
30,00 mm x 26,00 mm 3/8" (9,52 mm) 1,5....5,9 mm
31,75 mm x 27,50 mm 3/8" (9,52 mm) 1,8....10,0 mm
35,00 mm x 35,00 mm 3/8" (9,52 mm) 1,8...8,0 mm
31,75 mm x 27,50 mm 1/2" (12,70 mm) 1,8....9,0 mm
40,00 mm x 34,64 mm 1/2" (12,70 mm) 1,8....12,0 mm
35,00 mm x 35,00 mm 1/2" (12,70 mm) 1,6....12,0 mm
60,00 mm x 30,00 mm 5/8" (15,87 mm) 2,1....8,0 mm
40,00 mm x 34,64 mm 5/8" (15,87 mm) 1,8....12,0 mm
50,00 mm x 50,00 mm 5/8" (15,87 mm) 2,0....10,0 mm
