Disc Spring As Per Din2093

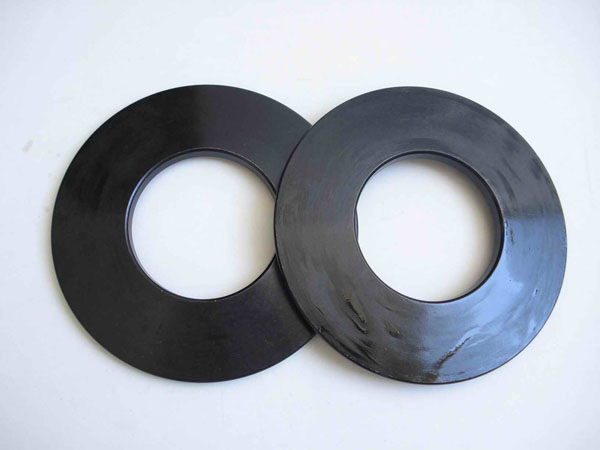

Disc spring as per DIN2093

Shuangyuan is specialized in producing wide range disc spring and spring washer as below:

1). Disc spring as per DIN2093,
2). "K" disc spring for ball bearings,
3). High duty safety spring washer as per DIN6796
4). Serrated safety washer"S" series and "VS" series.
5). Stainless steel disc spring by using material such as SUS304, SUS301.
6). Waved spring etc.

The characteristics of disc spring is "maximum force in minimum space".

Specification of conventienal disc springs is as below:
1)OD: 8.0mm to 600mm
2)Thickness: 0.2mm to 40mm

Production as per the standard of DIN2093 and GB/T1972.

We also can customize the disc spring as per customer's requirements.
Material: 50CRV4(51CRV4), 60Si2Mn, SUS304, SUS316, Inconel material etc.

Surface treatment: Oxidize bluing, electrophoresis, phosphating, mechenical zinc-plated etc.

Pls contact with us if you are interested.
