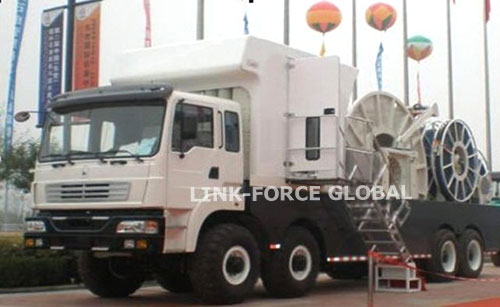

Workover Rig Chassis Gw5543

1) Engine
Model TCD2015V06
Type V-type 6-cylinder turbo-charged, wate-cold electronically controlled, common rail diesel engine
Maximun Power (Kw) 300
Maximun Speed (rpm) 2100
Maximum torque (N • m) / Speed (rpm) 2000/1300
Emission Standards Country Ⅲ
Manufacturer Hebei Hua Chai

Model TCD2015V06
Type V-type 6-cylinder turbo-charged, wate-cold electronically controlled, common rail diesel engine
Maximun Power (Kw) 300
Maximun Speed (rpm) 2100
Maximum torque (N • m) / Speed (rpm) 2000/1300
Emission Standards Country Ⅲ
Manufacturer Hebei Hua Chai

Item Parameters
Drive Type 8×8
Quality Parameters Curb Weight (kg) ≤22000
Load mass (kg) 36000
Loaded with total mass (kg) 58000
Size Parameters Total Length (mm) 12000
Overall width (mm) 2550
Overall height (mm) (full load) 3200
Wheelbase Ⅰ - Ⅱ (mm) 1600
Ⅱ - Ⅲ (mm) 5280
Ⅲ - Ⅳ (mm) 1370
Maximum climbing degrees (full load) (%) 32
steering ability Approach Angle (°) (full load) 24
Departure angle (°) (full load) ≥26
Minimum ground clearance (mm) 300
Minimum turning diameter (m) 38
