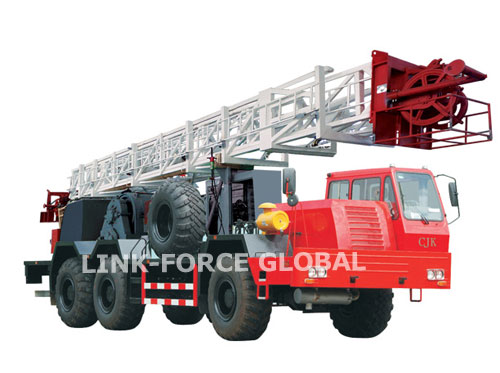

Sell workover rig chassis GW5303

) Engine
Model WD615.44
Type Inline six-cylinder turbo-charged intercooled diesel engineRated Power (Kw) 235
Rated Speed (rpm) 2200
Maximum torque (N • m) / Speed (rpm) 1400～1600
Emission Standards Country Ⅱ
Manufacturer Weichai
2) Hydraulic transmission
Transmission Type Z30-3-0F
Maximum input torque (N • m) 2500
The maximum input speed (r / min) 2200
Stalls 3 forward gears, one reverse, neutral gear
Transmission ratio Ⅰ bumper 3.1674, Ⅱ bumper 1.8114, Ⅲ bumper 0.9157, reverse 3.004
C) main technical parameters
Item Parameters
Drive Type 6 × 6 Quality Parameters Curb Weight (kg) 15890
Load mass (kg) 16110
Loaded with total mass (kg) 32000
Size Parameters Total Length (mm) 11300
Overall width (mm) 3080
Overall height (mm) (full load) 2870
Wheelbase Ⅰ - Ⅱ (mm) 4700
Ⅱ - Ⅲ (mm) 1800
tread (mm) 2480 plane height on frame loaded (mm) 1320
Dynamic The maximum speed (km / h) 40
Maximum climbing degrees (full load) (%) 30
Fuel Economy 100 kilometers lowest fuel consumption (L/100km) 58.9
