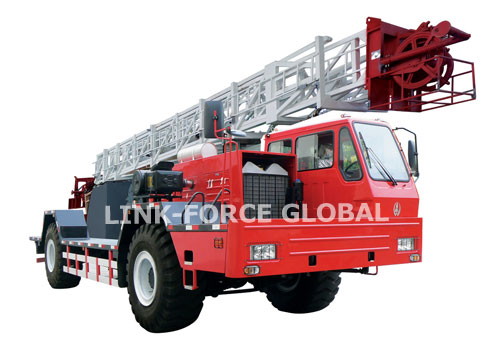

Sell workover rig chassis GW5290

1) Engine
Model WD615.329
Rated Power (Kw) 213
Rated Speed (rpm) 2200
Emission Standards Country Ⅲ
Manufacturer Weichai
2) Hydraulic transmission
Transmission Type BY352
Maximum Variable Moment Coefficient 2.4
Maximum input torque (N • m) 1532
Transmission ratio R bumper-5.12：1， N bumper，Ⅰbumper 4.00：1， Ⅱbumper2.01：1, Ⅲbumper 1.00：1
Manufacturer KaiXing
Item Parameters
Drive Type 4×4
Quality Parameters Curb Weight (kg) 12000
Load mass (kg) 17000
Loaded with total mass (kg) 29000
Size Parameters Total Length (mm) 10120
Overall width (mm) 3080
Overall height (mm) (full load) 3000
Wheelbase (mm) 5500
tread(mm) 2480
Front overhang 2310
Rear overhang 2305
Dynamic The maximum speed (km / h) 45
Fuel tank capacity (L) 400
steering ability Approach Angle (°) (full load) 26.5
Departure angle (°) (full load) 　 19
Minimum ground clearance (mm) 　 450
Minimum turning diameter (m) 26.5
