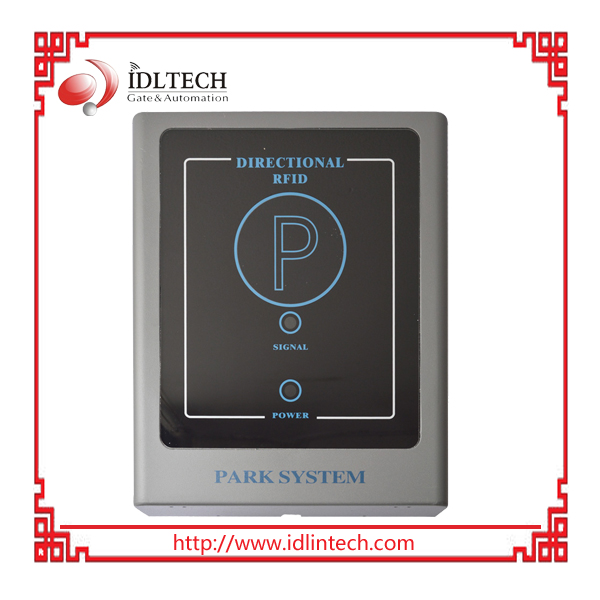

433mhz Rfid Long Range Reader

Hand-free up to 20m reading; Fast and reliable identification, no queues anymore; Compatible with any parking and access control systems.
It is a highly affordable long range reader that can penetrate most vehicle solar film to truly offer maximum distance hands free parking access.

Function Features
1) Based on ARM development, powerful function and stable performance
2) Industrial design, adaptable to global climate
3) 60 degree directional scanning identification, completely solves false identification from following cars
4) 15 sets of dual-way authentication codes, no interference from the adjacent lanes
5) Stable signal without impact from the cars' film

Technical Parameters
Power Supply: DC12V/3A
Communication Interface: RS485,VG26,VG34
Receiving Frequency: 433MHZ
Reading Area:60 degree conical area
Barrier Control: relay can control barrier directly
Reading Distance: 3 to 15 adjustable
Working Temperature/Humidity: -30 to +80 degree/ 10% to 90%
Pole Specification: ø60MM*1500MM/ telescopic pole optional
Dimension:290*240*65MM
Appearance Process: Use outdoor powder, electrostatic spraying

Application
Intelligent Parking Management System;
All-in-one Card Access Control System;
Non-stop Vehicle Counting System;
Non-stop Bus Attendance System;
Electronic Road Driving Test System,etc.
For more applications,please consult us.

Why Choose Our RFID Reader?
1) Enjoy the convenient of handsfree - no need stop to flash card.
2) No more getting hand wet during rainy days or expose to robbery threat when winding down windows to flash card.
3) Reduce congestion of long car queue during peak hours.
4) Add premium prestige reputation to your residential or commercial building.
