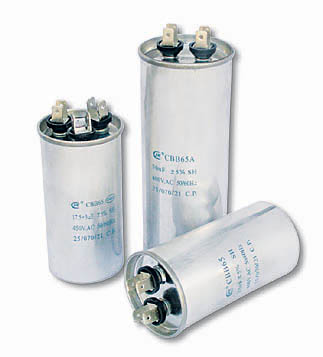

Air-conditionings Capacitor
Air-conditionings Capacitor, 1Item Code / Model Number:
1
Air-conditionings Capacitor
Features and uses：
CONSTRUCTION: non-inductive wound metallized polypropylene
COATING: Aluminium case filled with oil
RATED VOLTAGE: 180VAC~~~450VAC(250V/370V/400V/440V/450V)
LIFE EXPECTANCY: CLASS B-10.000h /CLASS C-3,000h
RATED FREQUENCY: 50/60Hz
RATED CAPACITANCE: 2μF-100μF
CAPACITANCE TOL.: ±5%, ±10% (standard), other tolerances upon request
CLIMATIC CATEGORY: 40/85/21 (IEC 60252)
OPERATING TEMP. RANGE: -40/+85°C
CASE: Aluminium
TEST VOLTAGE TERMINAL TO TERMINAL: 2.0 x Un for 60s (Un: rated voltage)
TEST VOLTAGE TERMINAL TO CASE:≥ 2000VAC for 60s
SAFETY CLASS:P1/P2
MAX. PERMISSIBLE VOLTAGE (RMS):1.1 x Un
MAX. PERMISSIBLE CURRENT (RMS):1.3 x In
MAX. PERMISSIBLE REACTIVE OUTPUT: 1.35 x Qn
Approvals: UL,VDE,TUV,CSA,CQC
CONSTRUCTION: non-inductive wound metallized polypropylene
COATING: Aluminium case filled with oil
RATED VOLTAGE: 180VAC~~~450VAC(250V/370V/400V/440V/450V)
LIFE EXPECTANCY: CLASS B-10.000h /CLASS C-3,000h
RATED FREQUENCY: 50/60Hz
RATED CAPACITANCE: 2μF-100μF
CAPACITANCE TOL.: ±5%, ±10% (standard), other tolerances upon request
CLIMATIC CATEGORY: 40/85/21 (IEC 60252)
OPERATING TEMP. RANGE: -40/+85°C
CASE: Aluminium
TEST VOLTAGE TERMINAL TO TERMINAL: 2.0 x Un for 60s (Un: rated voltage)
TEST VOLTAGE TERMINAL TO CASE:≥ 2000VAC for 60s
SAFETY CLASS:P1/P2
MAX. PERMISSIBLE VOLTAGE (RMS):1.1 x Un
MAX. PERMISSIBLE CURRENT (RMS):1.3 x In
MAX. PERMISSIBLE REACTIVE OUTPUT: 1.35 x Qn
Approvals: UL,VDE,TUV,CSA,CQC
- Place of Origin:
- China
- Brand:
- Csf
- Unit Price:
- USD 0.96
- Price Terms:
- FOB Shanghai
- Payment Terms:
- L/C;T/T;Cash
- Delivery Time:
- 2 days
- Min Order Quantity:
- 100pcs
- Standard / Certificates:
- ISO9000
- Keywords:
- capacitor, air-conditioning, film capacitor
