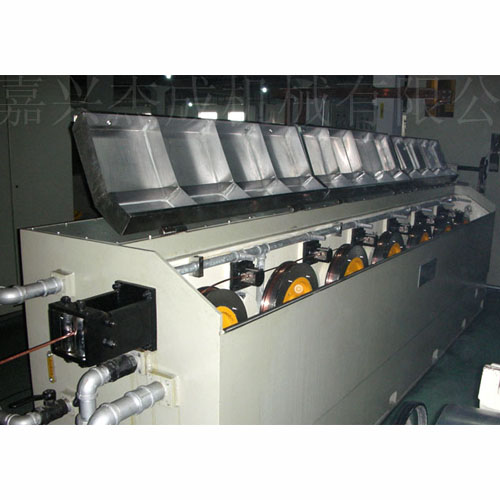

Pulling Machine

Pulling Machine
Item Code / Model Number:

Pulling Machine Pulling Machine
A. Inlet Wire: Dia 8mm
B. Outlet Wire: Dia: 1.4 23.4mm
C. Max. Wire Speed: 1000mpm
D. Molds: 13pcs
E. Mechnical Surface Reduction Rate: 23.6%
F. Preset Speed Wheel: Tungsten carbide sprayed on the surface
H. Max. diameter of entending wheel: dia: 450mm
I. Diameter of preset speed wheel: dia: 450mm
J. Powder of main unit: 250kw DC motor
K. Powder of take-up machine: 15kw AC motor
L. Transmission Mode: precisely grounded gears
M. Wire releasing Mode: passing end style
N. Drawing Cooled System: full immersing
O. Gauge applicable: dia: 800 winding and wire cutting frame
P. Take-up Weight: 1200-1800kgs
Q. Braking: Pneumatic brake
Annealing Date:
Power: 4000KA
Diameter of annealing wheel: dia: 400mm
Max. Speed: dia.2.6/600m
Transmission: flat belt transmission
Details will be provided as requested
