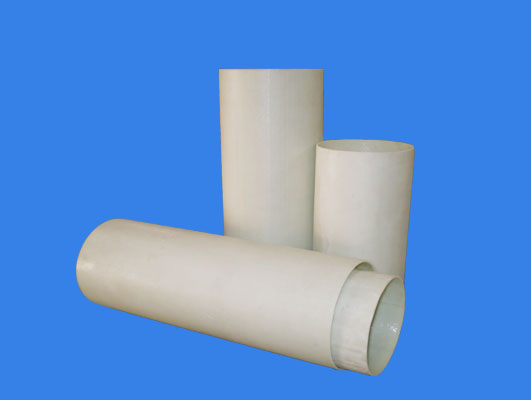

Epoxy Based Fiberglass Rolled Laminated Tube

Epoxy Based Fiberglass Rolled Laminated Tube is a kind of insulation product shaped through gluing alkali-free and twist-free glass fiber yarn, alkali-free glass cloth and epoxy cloth soaking in epoxy resin compound glue, then being heated and solidified; According to users’ requirements, it can be made into such heat-resistant grades as B, F or H grade, which have good electrical capability and mechanical strength, and now is widely used in many electrical appliances for insulation.

This tube can be produced in various specifications (diameter ranges from φ8 to φ600 mm) in accordance with your requirements, meanwhile, they can be processed according to different requirements (notch, turning, wiring etc.).

This product is made of non-alkali fiberglass cloth impregnated with epoxy resin under heat and press. It is provided with high mechanical strength, fine heat resistance and dielectric property. It can be used as an insulation construction material in electrical machines equipment under humidity or in transformer oil.

Main property:
Heat resistance F standard: Q/DJ10-731-2000
Density ≧1.85g/cm3 Flexural strength: ≧200N/MM2
Shear strength ≧18 N/MM2 Compressive strength ≧150N/MM2
